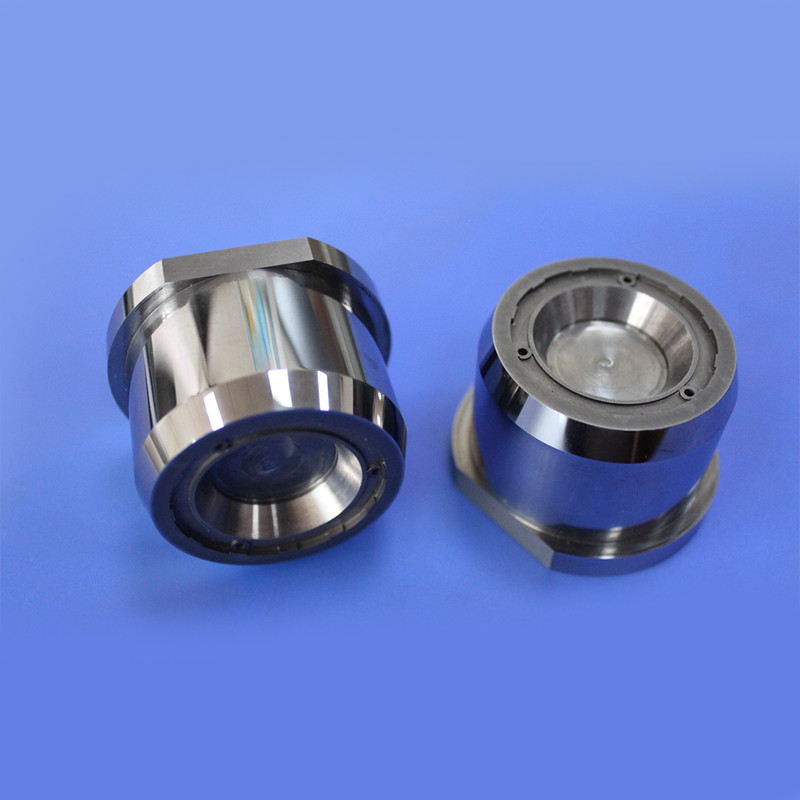

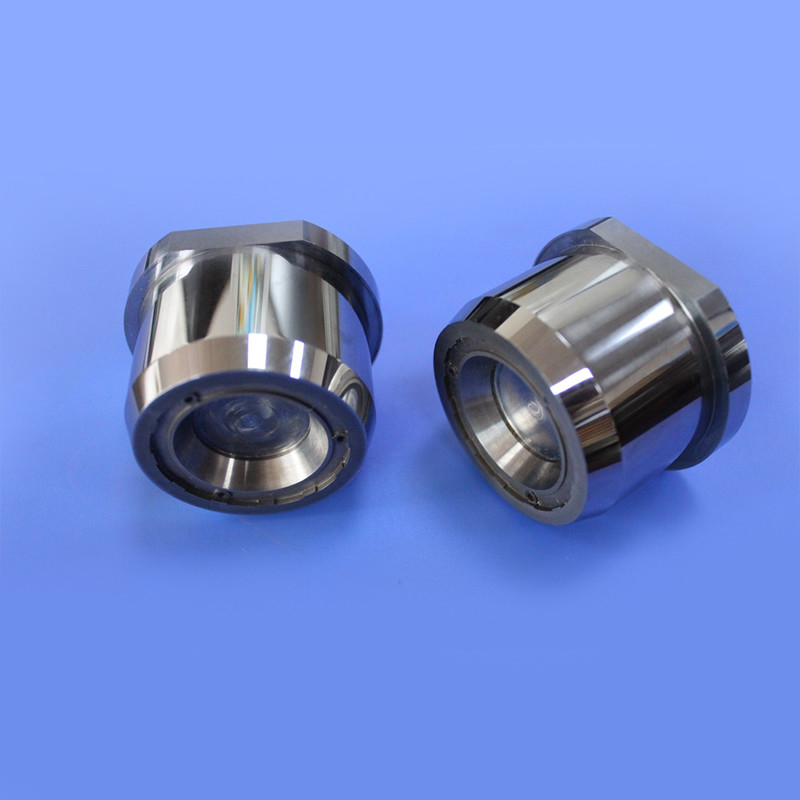

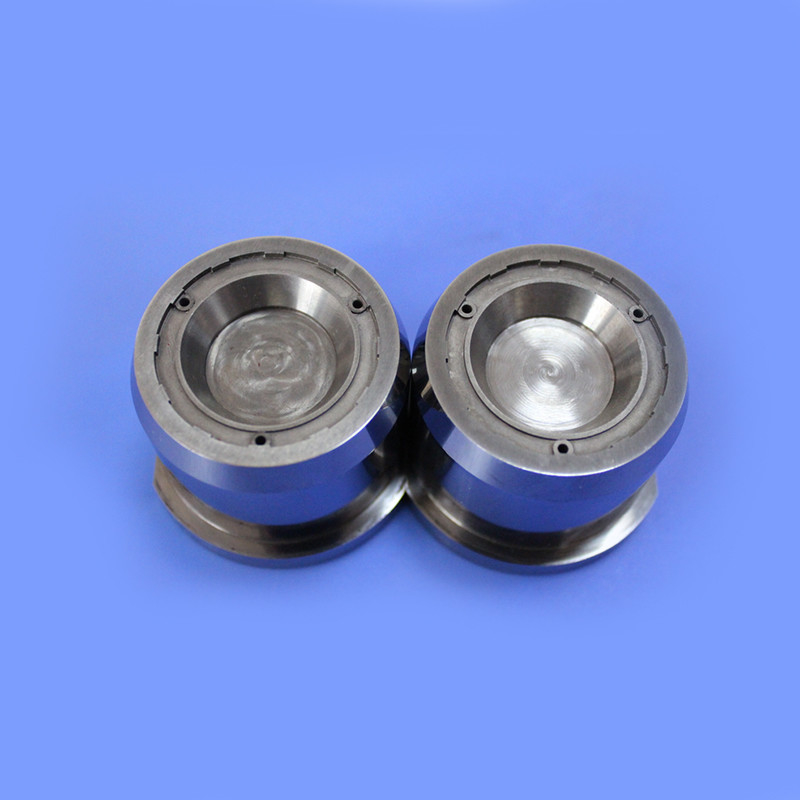

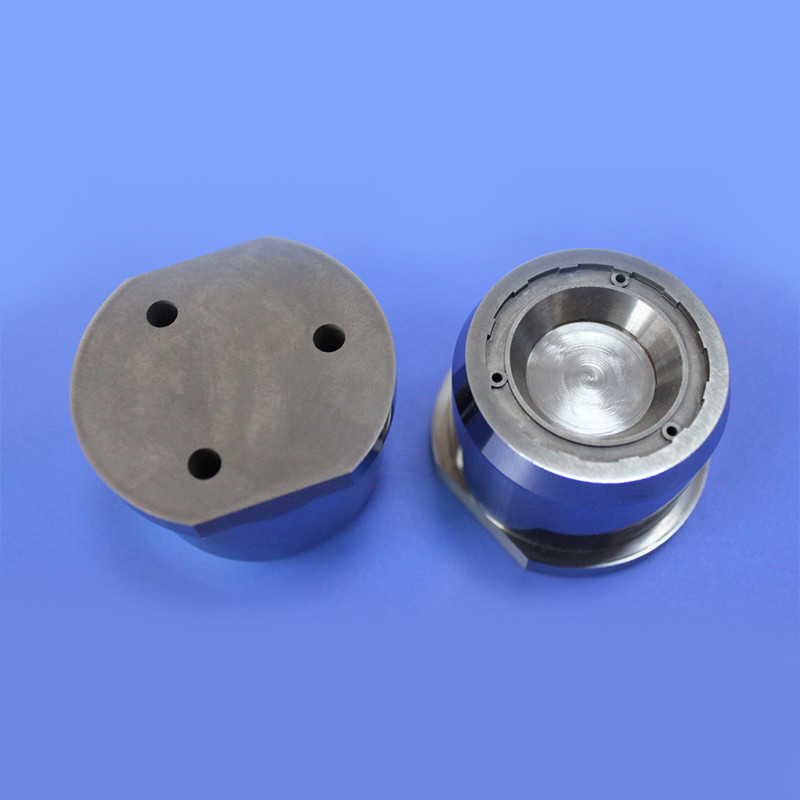

Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores
Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores

Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2067
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Mold Cores Material: Nickel Bond Non-Magnetic Carbide
Design: OEM Service Feature: Acid Proof
Application: Wind Farm Fan Foundation Setting Mold Samples: Available
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores
We specialize in precision custom machining of non-magnetic tungsten carbide mold cores, specifically designed for magnetic material production enterprises. Our solutions are engineered to meet the exact specifications and equipment requirements of your production processes.
Custom Manufacturing Capabilities
We produce and supply customized non-magnetic tungsten carbide mold cores based on equipment drawings provided by magnetic material production companies, ensuring perfect compatibility with your existing systems.
Key Components & Applications
  • Non-Magnetic Tungsten Carbide Ejector Pins and Guide Bushings: Customized components for precise mold ejection operations
  • Non-Magnetic Tungsten Carbide Injection Molding Hole Seats: High-wear and corrosion-resistant solutions for injection molding
  • Non-Magnetic Tungsten Carbide Ventilation Mold Core: Critical components ensuring mold stability and extended service life
  • Non-Magnetic Tungsten Carbide Inclined Shaping Seats: Precision solutions for inclined shaping applications
  • Non-Magnetic Tungsten Carbide Outer Diameter Core Rings: Custom components for structural stability and reliability
Available Material Grades
Standard grades include YN12, YN9, and other specialized formulations to meet specific application requirements.
Technical Specifications
Plan A Material Analysis
Parameter Value
Density (g/cm³) 14
Hardness (HRA) 89.5
Flexural Strength (Mpa) 3000
Porosity A02B00C00
Grain Size WC 0.8
WC (wt%) 88
Ni (wt%) 12
Co (wt%) 0
Magnetic Force 0-1
Plan B Material Analysis
Parameter Value
Density (g/cm³) 13.9
Hardness (HRA) 91.0
Flexural Strength (Mpa) 2700
Porosity A02B00C00
Grain Size WC 0.8
WC (wt%) 91
Ni (wt%) 9
Co (wt%) 0
Magnetic Force 0-1
Product Specifications
Name: Acid Proof OEM Non-Magnetic Tungsten Carbide Mold Cores
Draw Format: Auto CAD/DWG/PDF etc.
Tolerance: ±0.002mm
Hardness: Upon request
Mould Size: Customized size
Production Application: Mobile/laptop/digital camera/HD digital TV/automobile/electronics etc.
Certificate: ISO 9001:2015 & ISO 14001:2015
Surface Treatment: Polishing/mirror polishing/plating/heat treatment or custom
Precision Machining: CNC/surface grinding machine/WEDM-HS/sandik wire cutting/EDM/WIDA optical curve grinder etc.
Measuring Instruments: Profile projector/electronic height gauge/CMM/2D measuring instrument/vernier caliper/microscope/micrometer etc.
Steel Material: KD20/SKD11/CD650/12EF/YG15/ASP23/ASP60/SKH-9/Cemented Carbide etc.
Mould Life: Depends on steel material and customer requirements
Main Service: Made-to-order
Our Business Philosophy
We operate under the principles of "quality first, customer first" and welcome both wholesale and retail orders with competitive pricing for large quantities. Our commitment includes timely delivery and fostering mutual growth with our customers as we expand our market presence.
Wind Farm Fan Foundation Setting Mold Non-Magnetic Tungsten Carbide Mold Cores 0
