Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds
Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds

Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2081
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Concave Dies Surface Finish: Smooth
Material Formula: Customized Service: OEM & ODM
Grades: Various Grades Technology: Powder Metallurgy
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

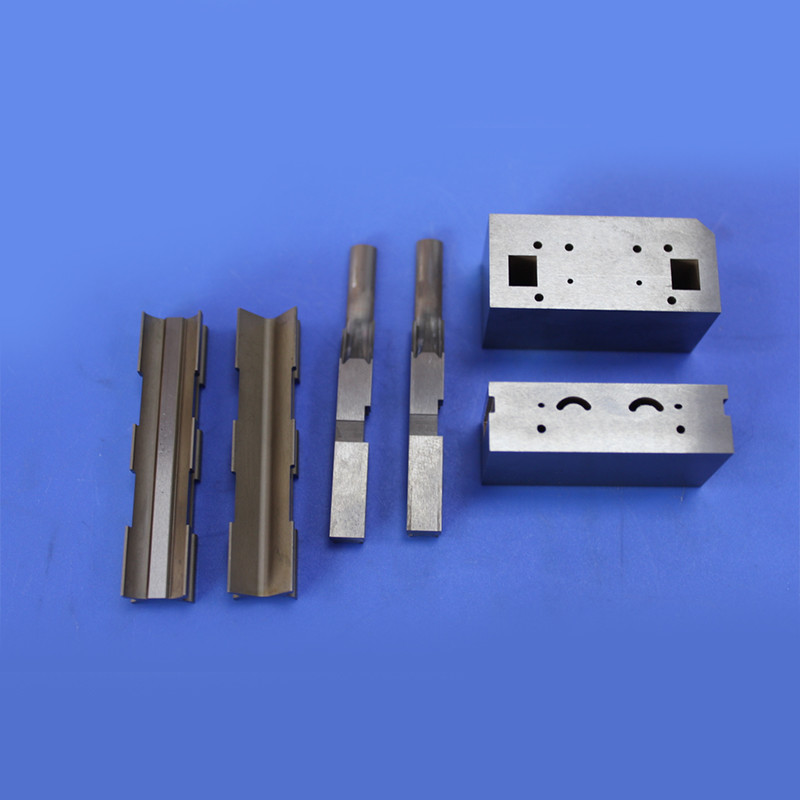

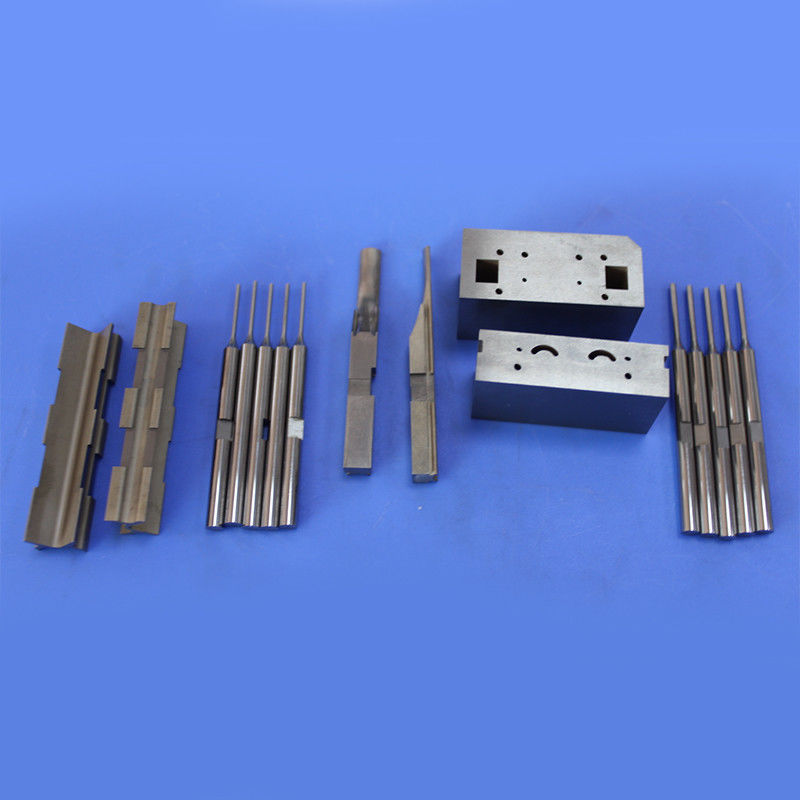

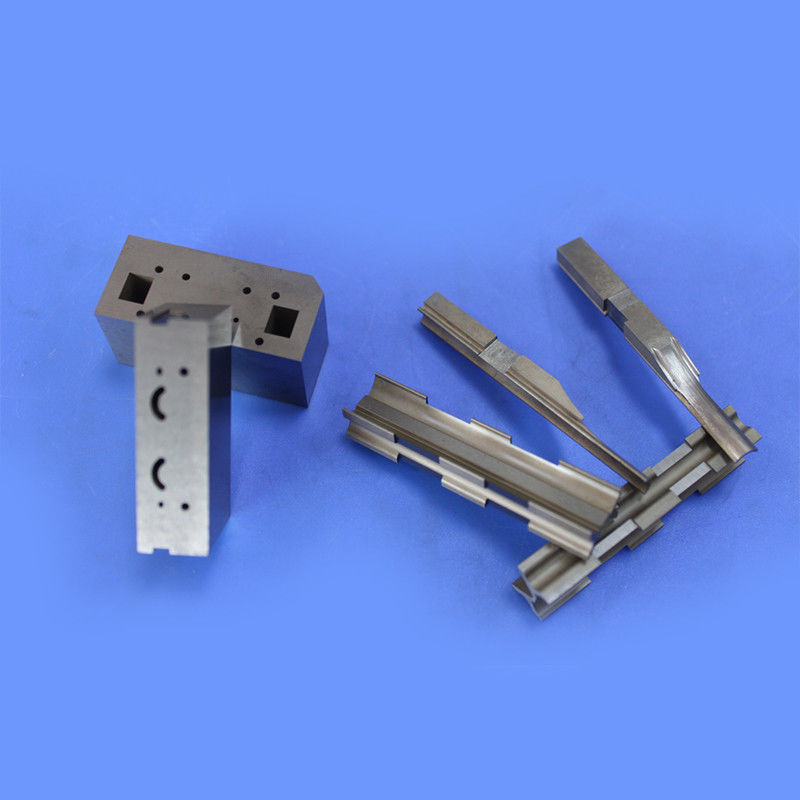

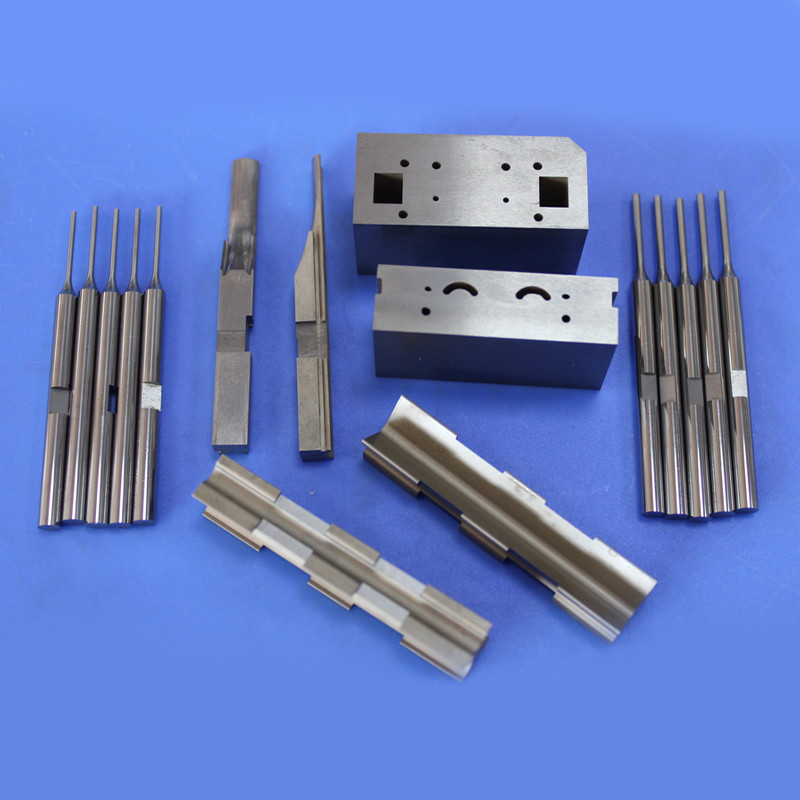

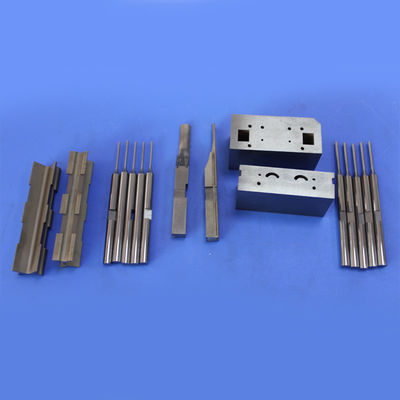

Customized Processing of Non-Standard Tungsten Carbide Concave Dies
We provide efficient customized processing services for non-standard tungsten carbide concave dies with irregular shapes. Concave dies, also known as cavities, are essential components that form the outer surface of molded plastic parts. These dies can be installed on either the stationary or moving die sections of molding equipment.
Product Features
  • Diverse Forms: Available in various shapes including circular and rectangular to meet different industrial application requirements
  • Flexible Structures: Offered in both integral and insert styles for adaptability across various machining scenarios
  • Blade Edge Design: Customizable with flat or slanted blade edge options based on specific application needs
  • Precision Manufacturing: Capable of meeting tight tolerance requirements of 0/+0.002 and 0/-0.005 for high-precision machining results
Application Areas
Precision molds are critical tools in manufacturing mass production. Our customized processing service for non-standard tungsten carbide concave dies with irregular shapes is suitable for various machining equipment and can meet mold requirements across multiple industries, including customized irregular tungsten carbide concave and convex molds.
Size Requirements
We provide customized processing services with precision requirements of 0/+0.002 and 0/-0.005, catering to diverse precision machining needs according to customer specifications.
Performance Advantages
Advantage 1 Reduces friction coefficient, minimizes processing stress, improves surface hardness, significantly extends mold service life, prevents product galling and straining, enhances product quality, eliminates the need for unloading, polishing and reloading, and improves overall efficiency.
Advantage 2 Addresses common malfunctions caused by abrasive wear, corrosion, blending, and adhesion. These issues not only reduce working time but also increase consumption costs, affecting enterprise competitiveness. PVD coating technology effectively resolves these problems and can extend product service life by 5-8 times for applications like blanking, cold heading, and powder molding. For extension, drawing, and flanging dies suffering from bite or pulling issues, coated molds can be restored to service.
Advantage 3 TiCN coating features a microstructure of fine nano particles combining high toughness, high hardness, and high oxidation resistance. This creates an extremely lubricious surface with frictionless chip evacuation, resulting in superior workpiece performance. TiN coating treatment provides excellent surface brightness, low friction coefficient, high hardness, and strong oxidation resistance.
Customized Processing Non-Standard Tungsten Carbide Concave Die with Precision Tolerance 0/+0.002 for Industrial Molds 0
We are committed to providing efficient, flexible, and precise services for the customized processing of non-standard tungsten carbide concave dies with irregular shapes, meeting the strict mold requirements of various industries.
