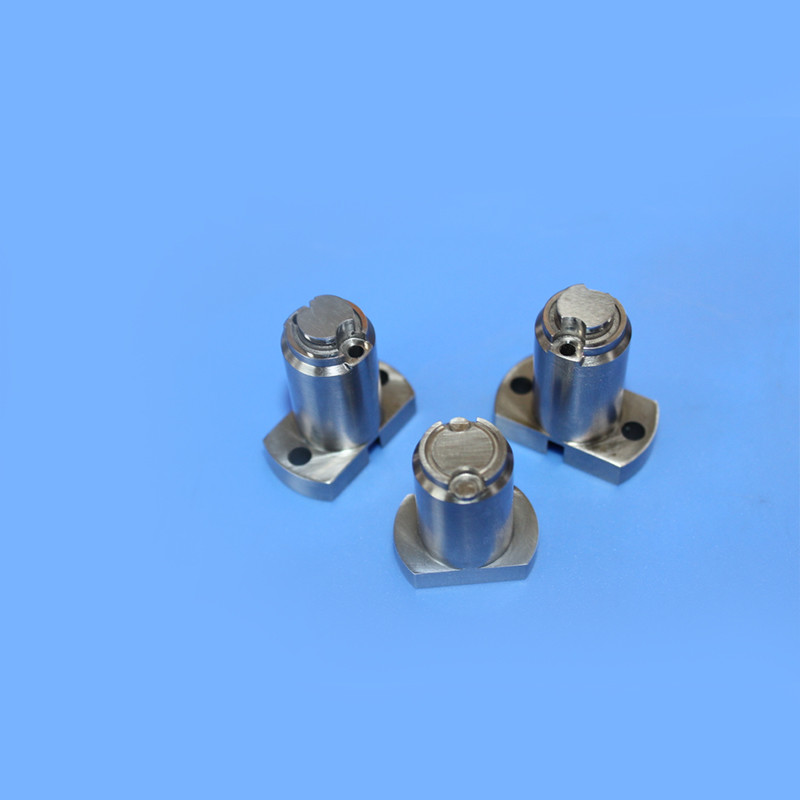

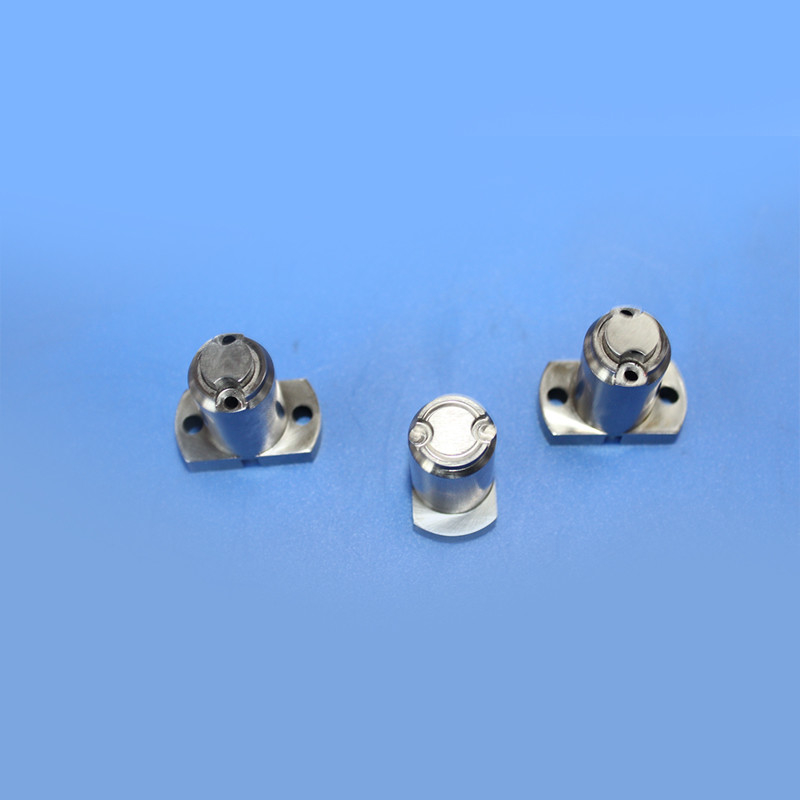

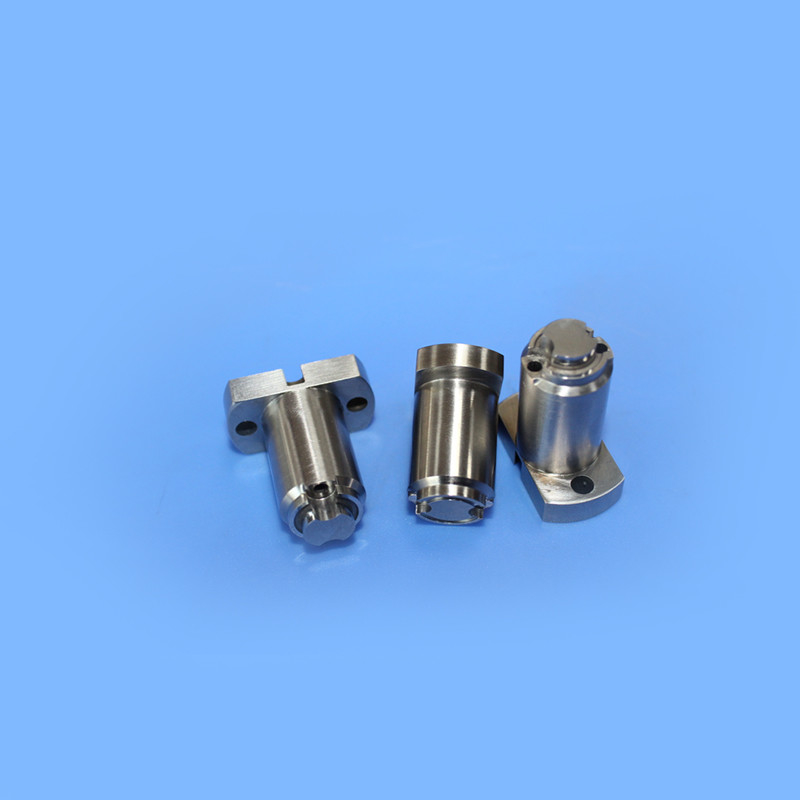

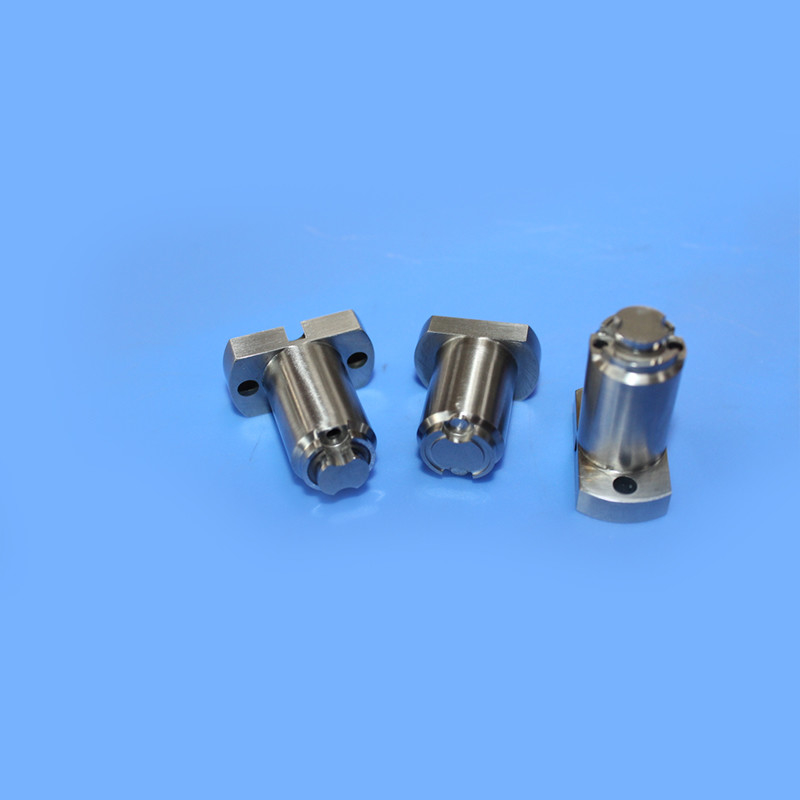

Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder
Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder

Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2150
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Feature: Tungsten Carbide Fixed Mold Insert Holder Punching Material: High Speed Steel
Type: Carbide (Tungsten Steel) Progressive Die Surface: Smooth, Shiny
Grades: Various Grades Technology: Powder Metallurgy
Advantage: Wear Resistant Service Life: Long
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder
This tungsten carbide fixed mold insert holder is an essential component for mold manufacturing, providing critical support with exceptional hardness, wear resistance, and operational stability. Our high-quality hard alloy progressive punching dies can be custom processed according to your drawings or samples.
Key Features
  • Fixed Module: Provides stable support and precise positioning for movable mold components
  • Wear Resistance: Tungsten carbide construction ensures long-term durability under high friction conditions
  • Stability: Maintains precision and consistent performance throughout mold operation
Technical Specifications
Grade Co% Hardness HRA Density g/cm³ Bending Strength Mpa Elastic Modulus Gpa Applicable Materials
SX10 10 91.7 14.4 4300 490 Copper, aluminum sheets under 0.2mm thickness
SX15 12 92.5 14.1 4500 460 Copper, aluminum, and stainless steel sheets
SX20 13 90.6 14.1 4100 460 Copper, aluminum sheets with high versatility
SX35A 12 89.8 14.2 3400 470 Cold rolled sheets (Q195, SPCC)
SX36 15 89.4 13.8 3900 430 EI film, SPCC board
SX40A 12 88.9 14.2 3300 470 Cold rolled sheets (Q195, SPCC)
SX45A 15 87.9 13.9 3200 440 Silicon steel sheet, cold rolled sheet
SX55 20 86.4 13.5 3100 390 Silicon steel sheet, upper and lower punch
Manufacturing Advantages
  • Professional material selection by experienced engineers using superfine particle raw powder
  • Advanced precision processing equipment with unique manufacturing processes
  • Exceptional wear resistance extends service life and reduces maintenance frequency
  • Unique production process controls internal stress in large-size mold materials
  • Special alloy composition enhances corrosion resistance during electrical processing
Packaging & Shipping
Our tungsten carbide products are carefully packaged with high-quality materials to prevent damage during transit. All items are securely boxed or wrapped with appropriate padding and bracing. We partner with reliable courier services and offer express shipping options for urgent orders.
Durable Progressive Punching Die Tungsten Carbide Fixed Mold Insert Holder 0
