Wolfram Carbide Material Tungsten Steel Pin with Double Heads Parallel

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0003-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Steel Pin Design: Double Heads Parallel
Samples: Available Carbide Grade: Yg6, Yg8, Yg10, Etc
Hardness: HRA 89-91 Service: OEM&ODM
Surface Treatment: Well Ground And Polished Usage: Carbide Punch And Die
High Light:

hardened steel pins

,

tungsten carbide parts

Product Description

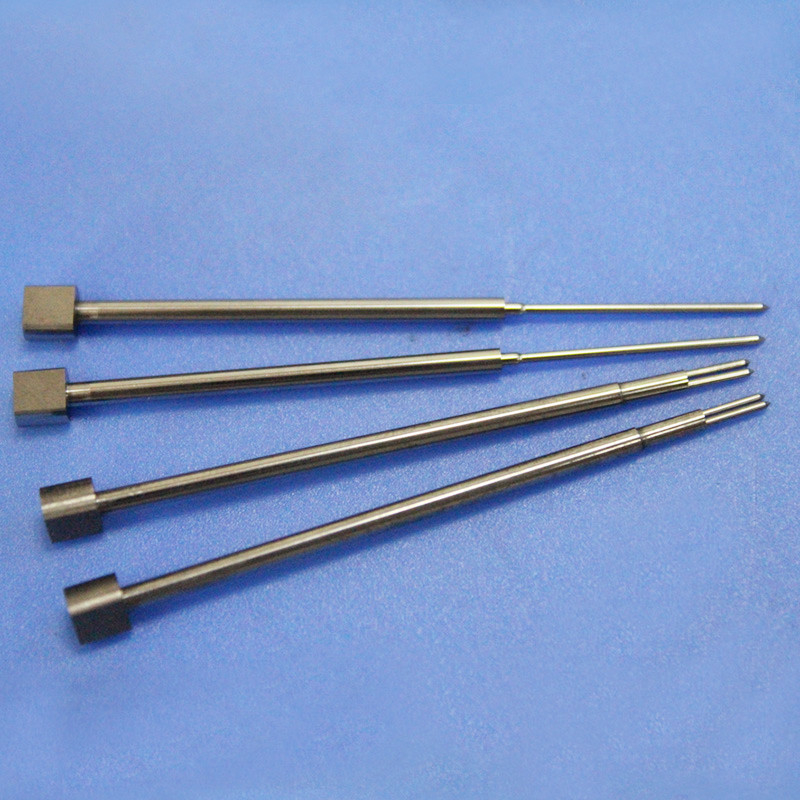

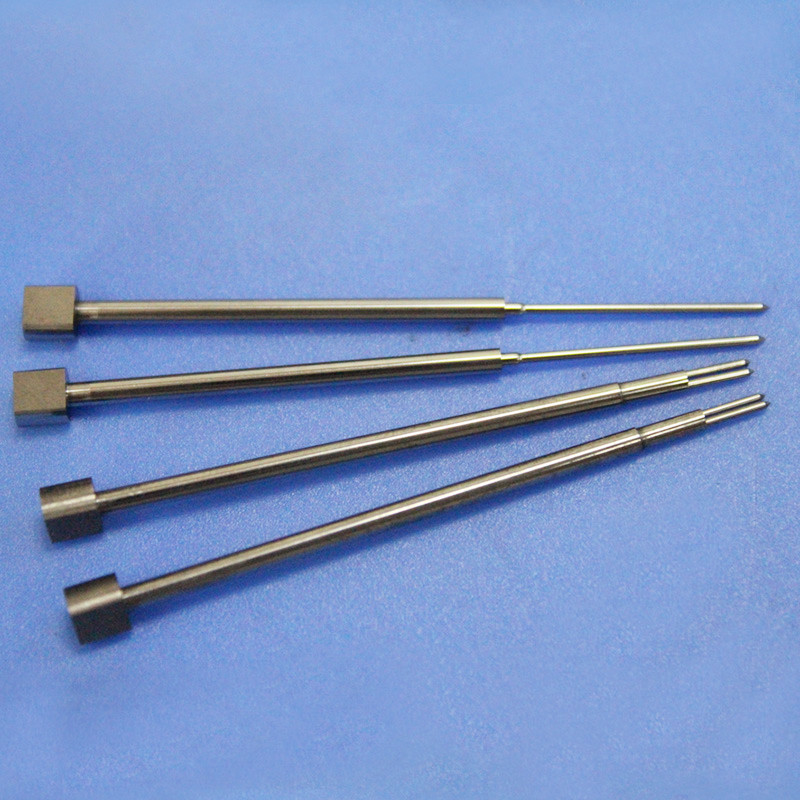

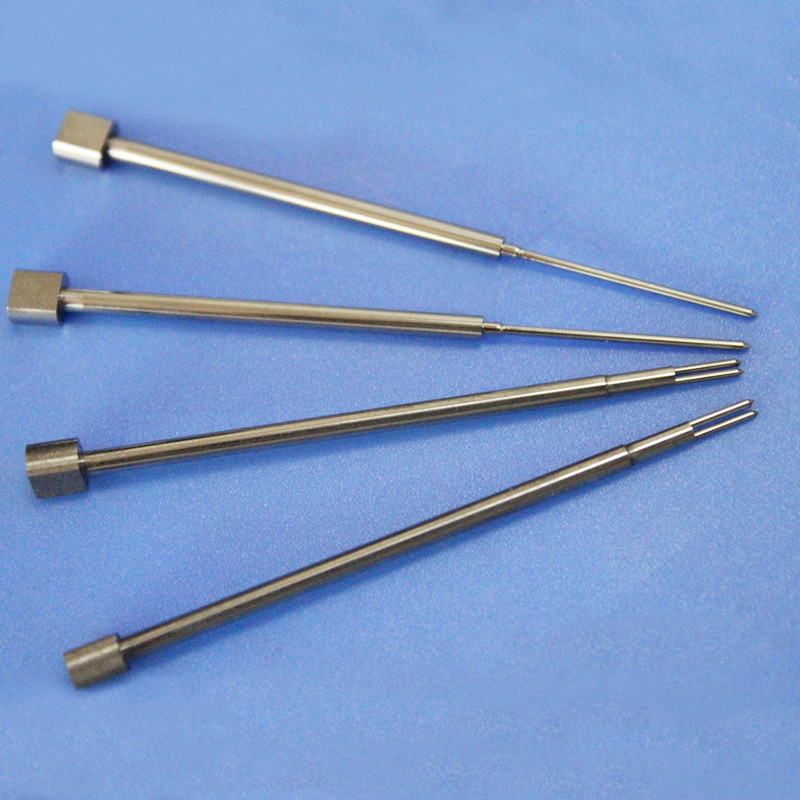

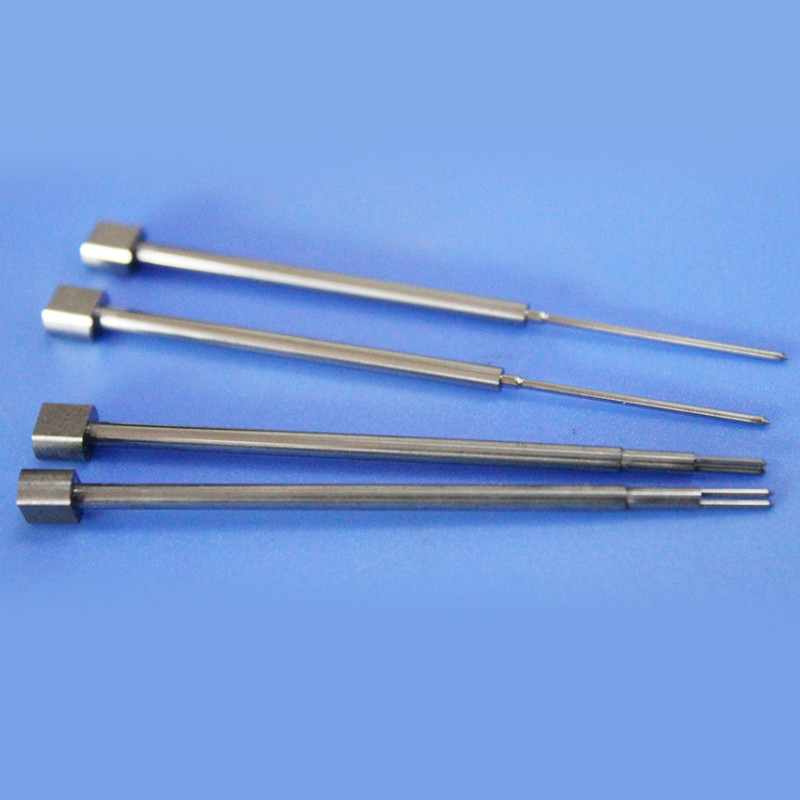

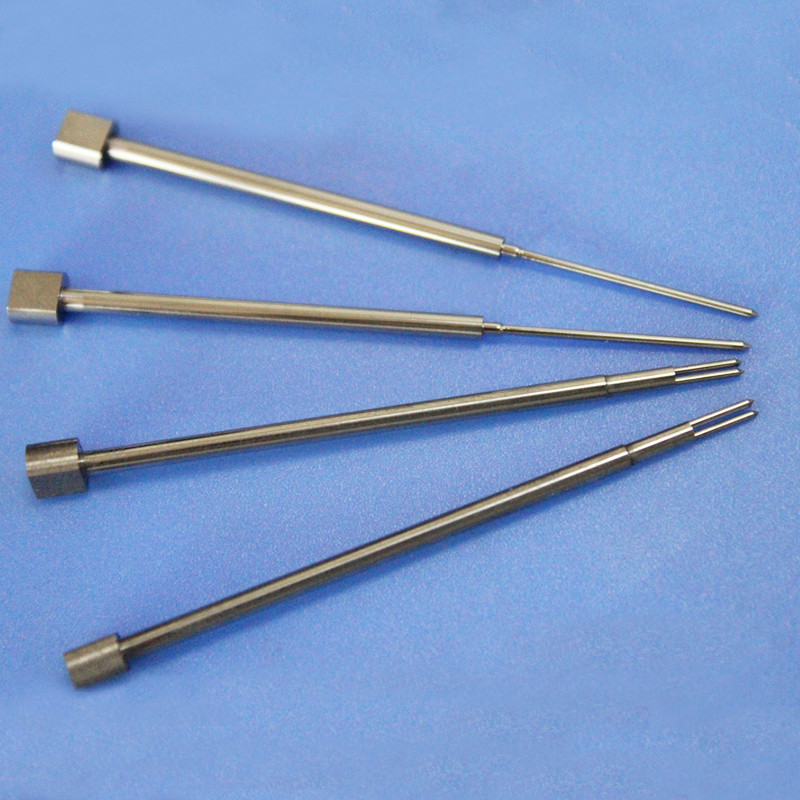

Wolfram Carbide Material Tungsten Steel Pin with Double Heads Parallel

Normally tungsten carbide punch pins are with single head, one tips.

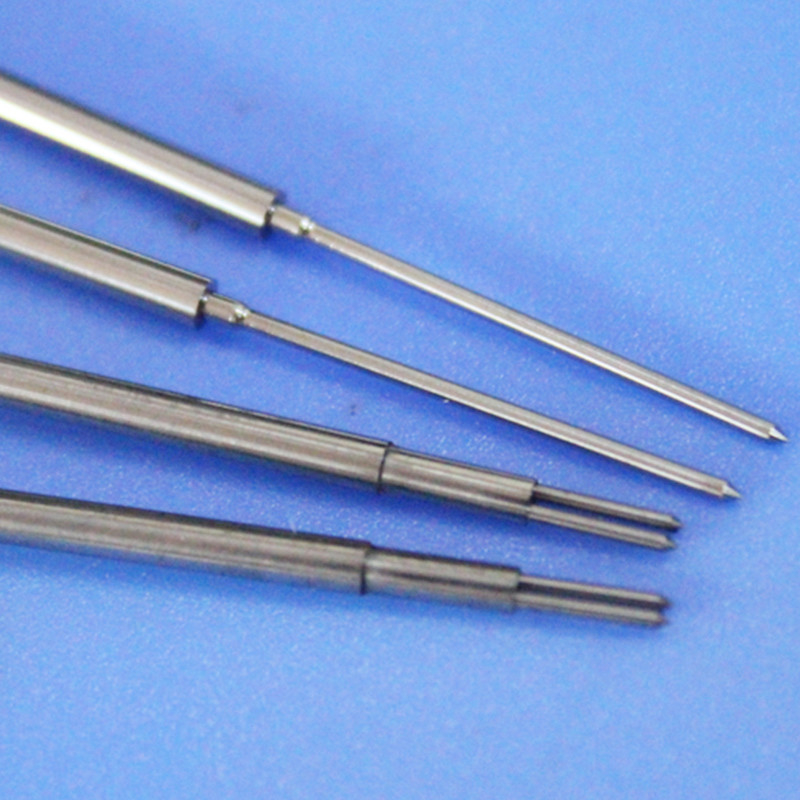

But one customer asked us to customized this special tungsten steel pin with double heads, parallel, same tips.
We've did our damnedest to complete it.

Good physical stability is the basic performance of tungsten carbide products, for wear resistance, high temperature resistance, corrosion resistance and other working conditions of the use of the requirements is also very competent.
This is a direct expression of the high performance carbide tool for improving production efficiency.
Professional for the use of precision die accessories, needle sets.

According to the customer's iron core stamping mold application requirements of non-standard production and processing, we produce tungsten carbide internal and external rotor press-in pin, forming pin, internal and external rotor measuring needle and other series of precision tungsten carbide punching pin.

With clients' specific drawing requirements as the standard of accuracy tolerance requirement, the physical carbide material parameters can be considered as follows:
Property Range
Grain Size (μm) 0.8-2.0
Cobalt Content (% Co) 6-10
Density (g/cm³) 14.45
Hardness (HRA) 88-92
Flexural Strength (MPa) 3200-3800
Young's Modulus (GPa) 570
Compression strength Mpa 4700



Technical parameters:

Tungsten steel insert pin precision mold inserts pin are customized according to customer's drawing, and qualified data reports are provided together. Sharp tools make good work. The high-quality tungsten steel material has been processed into moving die pin. The finished product has passed the dimensional inspection to meet the tolerance requirements. The whole procedures are strict and precise, ensuring that each dimension meets the requirements of the drawings. We can provide tungsten steel insert pin precision mold insert pin testing data reports together with the products to facilitate the customer's actual inspection.



Advantages:

High-quality materials are a good way to improve production efficiency and standards. As insert pin manufacturing products, the performance of tungsten-steel insert-pin is excellent. As tungsten steel insert pin used for precision molds, the consistency is a key factor that directly affects the service life of the mold and the dimensional accuracy of the product. The production and processing of tungsten steel insert pin is according to the requirements of the drawings, to meet the dimensional accuracy.

Wolfram Carbide Material Tungsten Steel Pin with Double Heads Parallel 0
