Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining
Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining

Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX1018
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Lower Die Insert Type: Custom Carbide Mold
Wear Resistance: Excellent Material Formula: Customized
Technology: Powder Metallurgy Production Process: Precision Tungsten Machining
Trial Order: Available Service: OEM&ODM
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

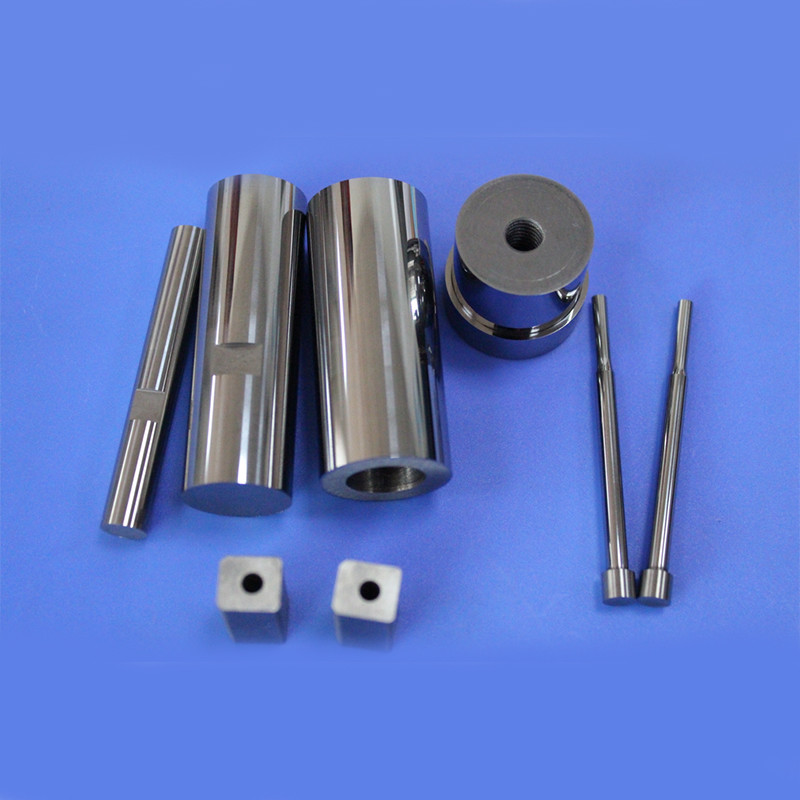

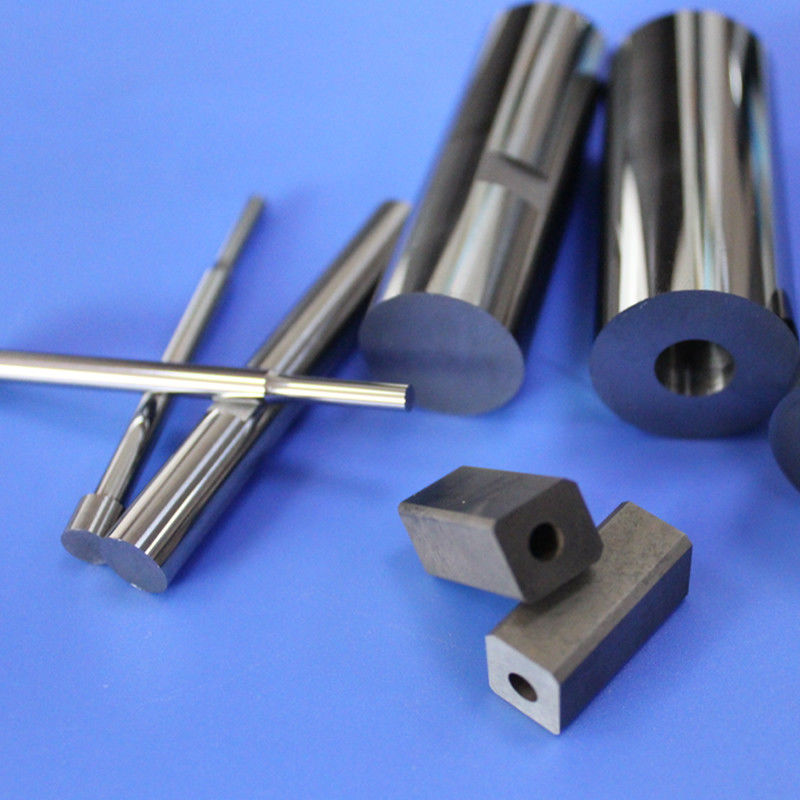

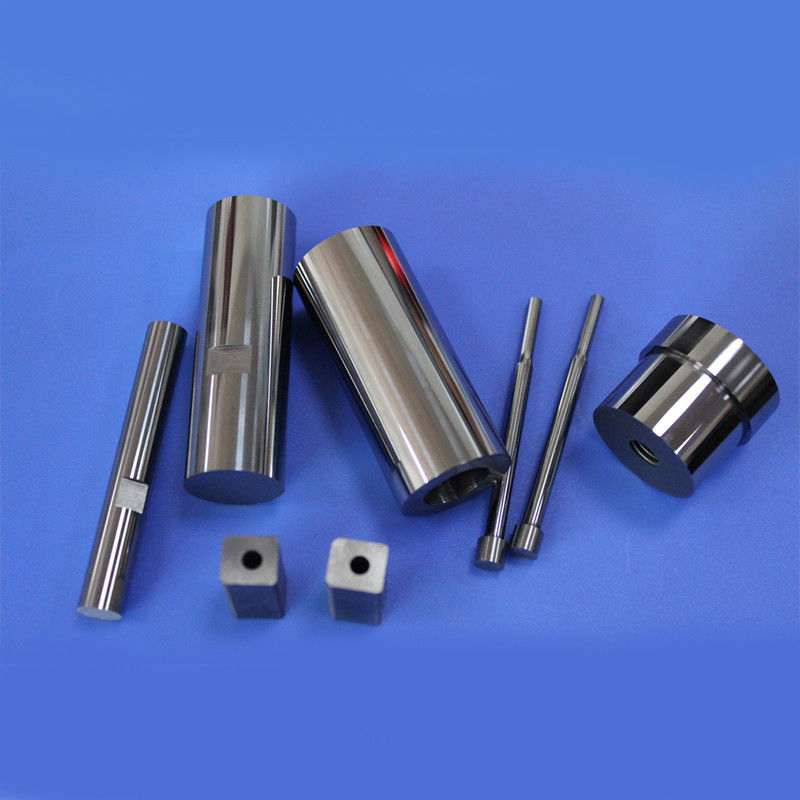

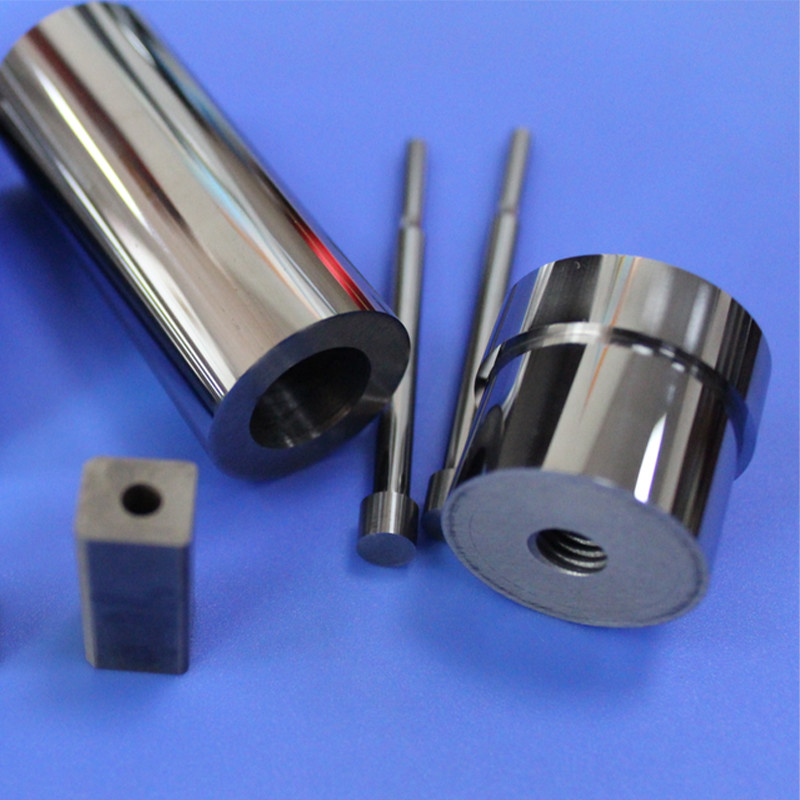

Custom Carbide Mold Punch Head and Tungsten Carbide Lower Die Insert
Designed for high-speed punching molds, especially suitable for high-speed stamping and progressive die applications.
Product Features
  • High-speed punching molds and progressive molds have stringent requirements for tungsten carbide punch head components
  • Chunbao Tungsten Steel WF30 chosen as the base material for producing high-performance punch heads and die inserts
Tungsten Carbide Material Properties
Property Specification
Grain size (um) 1.0 ~ 2.0
Cobalt content (Co%) 8.0 ~ 10
Density (g/cm³) 14.41 ~ 14.95
Hardness (HRA) 89.5 ~ 93
Bending strength (Mpa) 3200 ~ 4500
Young's modulus (Gpa) 570 ~ 620
Compressive strength (Mpa) 4700
Product Specifications
  • Tolerance requirements of -0.005 for punch heads
  • Concentricity requirements of 0.005
  • Die inserts require a straight 4 taper 1, cut one trim two
Our Services
As a precision machining manufacturer in Zhuzhou, Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd. offers customized machining services for a range of precision mold components, including tungsten carbide punch heads, tungsten carbide die inserts, tungsten carbide molds, tungsten carbide punch pins, tungsten carbide punches, tungsten carbide dies, and more. Multiple options for tungsten carbide machining hard alloy materials are provided to meet diverse machinery component needs.
Manufacturing Advantage
As the industrial tooth, cemented carbide is ideal tool material for manufacturing. As a cemented carbide production manufacturer in Zhuzhou, relying on Zhuzhou 60-year cemented carbide expert production technology and industrial chain in Zhuzhou, we provide customers with high-quality hard alloy wear-resistant parts and non-standard shaped carbide products. Based on customer's drawing requirements, we select high-quality materials to satisfy customers' use demand.
Discover the durability of our high-quality Tungsten Carbide Hard Metal Punch. Customized for precision and heavy-duty industrial use. Packaged in a sturdy Carton Box.
Key Performance Benefits
Benefit Description
Outstanding Wear Resistance Tungsten carbide, as the internal embedded material, possesses remarkable hardness and wear resistance, capable of withstanding friction and impact from high-speed pump operation
Superior Corrosion Resistance The embedded structure effectively isolates the external medium from corroding the steel, prolonging the product's service life and making it suitable for different liquid environments
Excellent Sealing Performance The design of the dynamic and static ring components ensures reliable sealing during pump operation, reducing the risk of leaks
Suitable for High-Pressure Environments Tungsten steel inserts can withstand high-pressure working conditions in water pumps, ensuring the stability of the system
Custom Carbide Mold Punch Head and Tungsten Carbide Die Insert with Excellent Wear Resistance, Customized Material Formula, and Precision Tungsten Machining 0
