High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold

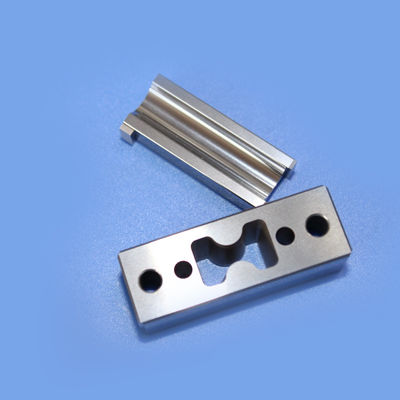

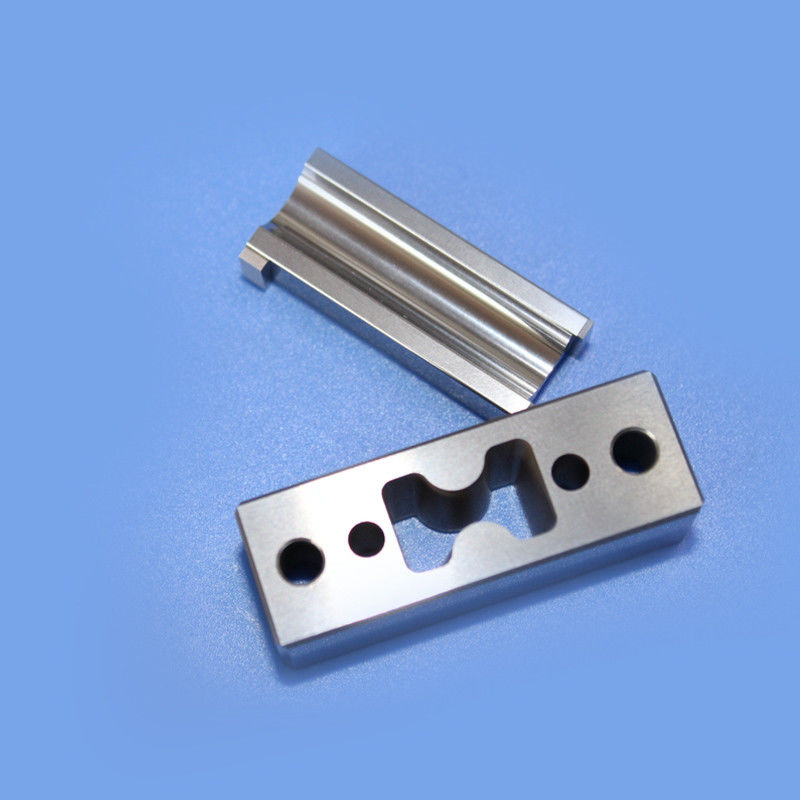

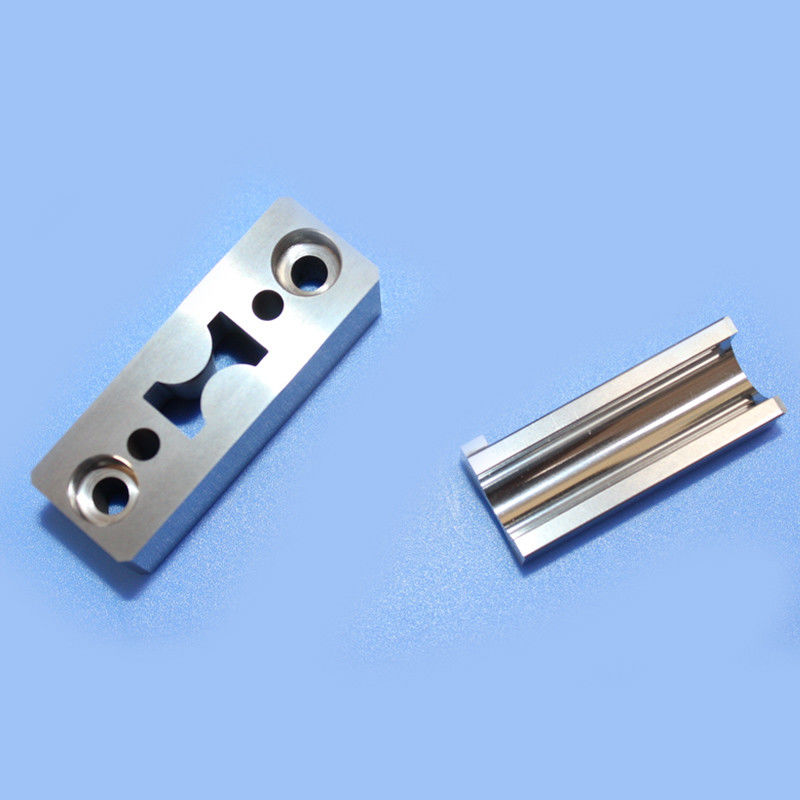

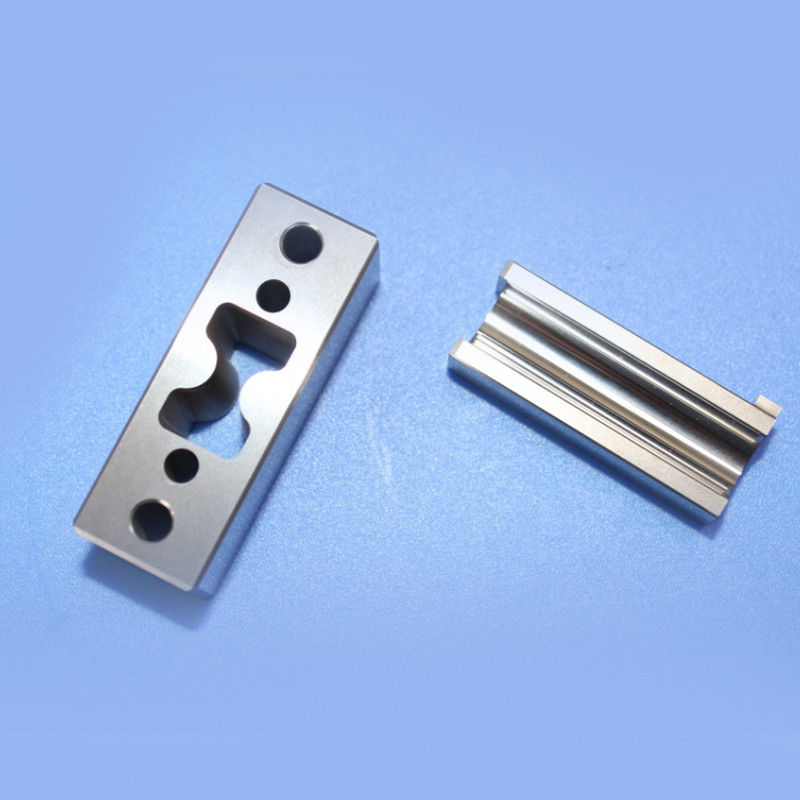

High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold

High Compressive Strength Tungsten Carbide Die Cutter with Customizable Size for Precision Machining in Concave and Convex Mold

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX1060
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Tungsten Carbide Die Cutter Design: Concave And Convex Mold
Feature: High Compressive Strength Samples: Available
Surface: Smooth, Shiny Size: Customizable
Highlight:

cold heading dies

,

progressive punching die

Product Description

High Compressive Strength Tungsten Carbide Die Cutter Concave and Convex
Designed specifically for the new energy power battery industry, our tungsten carbide die cutter sets provide precision cutting solutions for lithium battery manufacturing. These hard alloy cutting blade molds deliver exceptional performance for precise machining of positive and negative electrode tabs.
Product Specifications
Upper Die Cutter (Convex Mold): 40*15-12*13-10*2-R6*8-C0.5

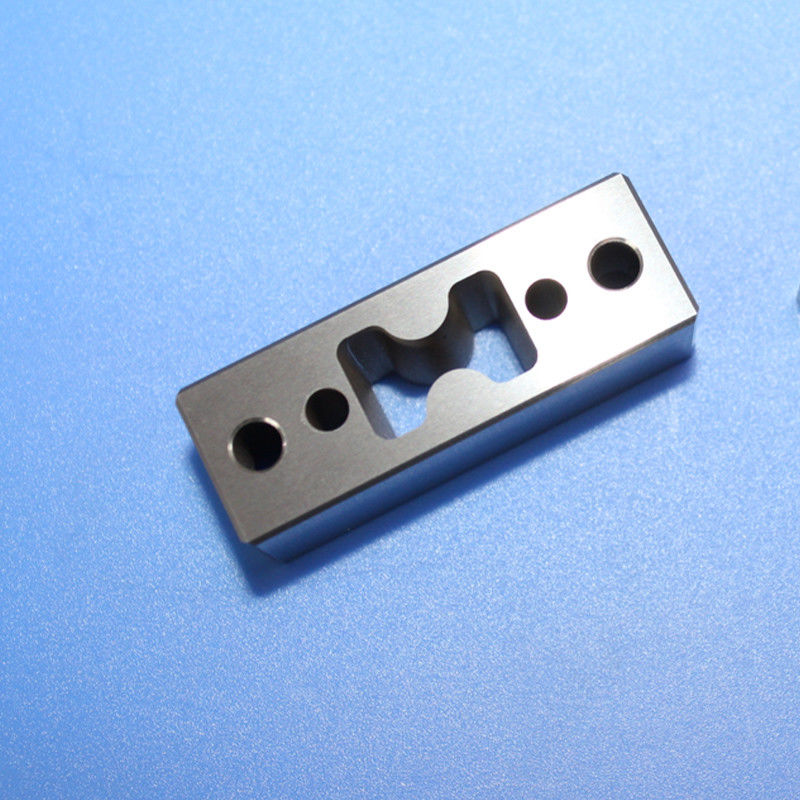

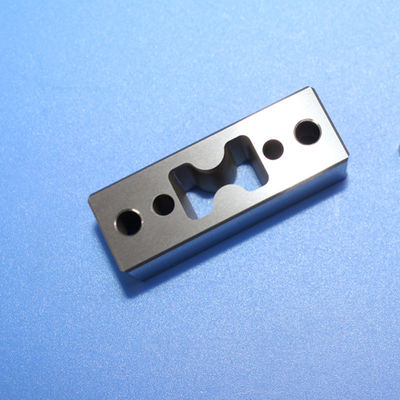

Lower Die Cutter (Concave Mold): 49*42-2-φ3.4-φ6*25-2-φ4*15*5*2-R6
Parameters Details
Shape Round, Square, Rectangular, Customized
Heat Resistance ≤ 900ºC
Product Name Tungsten Carbide Processing
Tolerance ± 0.01mm
Density 14.5-15.0g/cm³
Flexibility Excellent
Impact Resistance Excellent
Processing Method Cutting, Grinding, Polishing
Lifespan Long
Material Tungsten Carbide
Plating Tungsten Carbide Plating, Tungsten Carbide Coating
Performance Features
Convex Mold: Features sharp cutting edge with no gaps when magnified 200x. Designed for use with concave mold. Cuts nickel strips with burrs less than 8μm. Lifespan exceeds 600,000 cycles with symmetry tolerance under 0.001. Double-sided clearance with concave mold: 0~0.003.
Concave Mold: Boasts sharp cutting edge with no gaps when magnified 200x. Designed for use with convex mold. Cuts nickel strips with burrs less than 0.008mm. Provides long service life for efficient production demands.
Product Keywords
Hardmetal Tungsten Carbide Dies Power Tool Parts Solid Carbide Tools Custom Carbide Tooling Carbide Wear Parts
After Sales Services
Welcome to Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd.! We provide comprehensive technical support and services for tungsten carbide processing applications.
Customized solutions and technical advice
Product installation and setup assistance
Troubleshooting and technical support
Product training and operational guidance
On-site support and maintenance services
Software updates and system upgrades
24/7 customer service availability
Warranty: 1-year warranty with excellent after-sales service. Our experienced team ensures you maximize your tungsten carbide processing capabilities.
