Tungsten Carbide High Precision Glue Dispenser Tungsten Steel Punch Pin

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2010
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Steel Punch Pin Appearance: Polishing, Sintering
Sizes: Different Sizes Surface Treatment: Blank,ground,polished
Trial Order: Acceptable Other Service: OEM & ODM
Application: High Precision Glue Dispenser
High Light:

hardened steel pins

,

tungsten carbide parts

Product Description

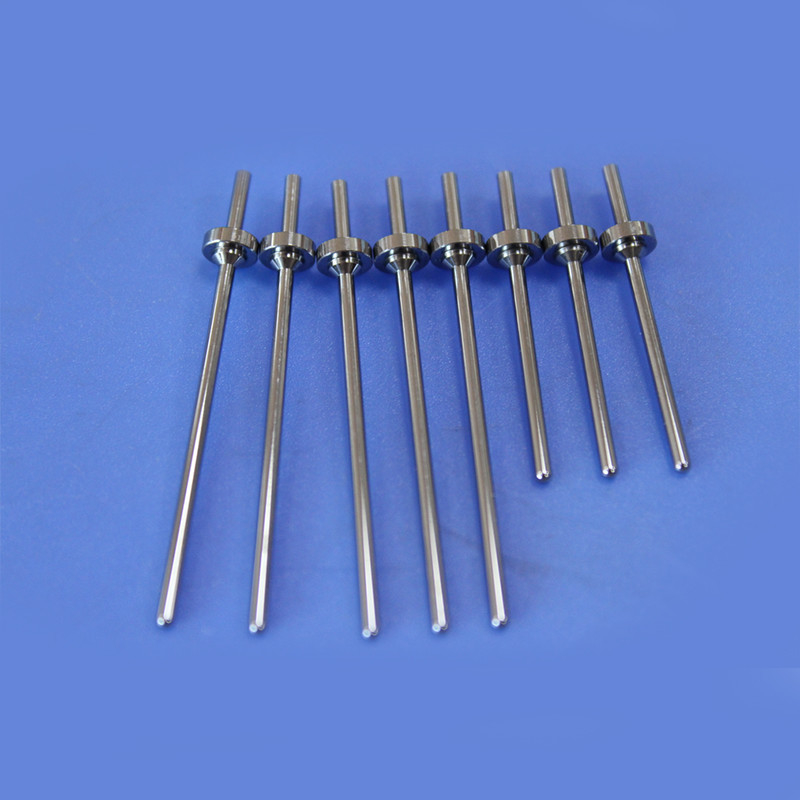

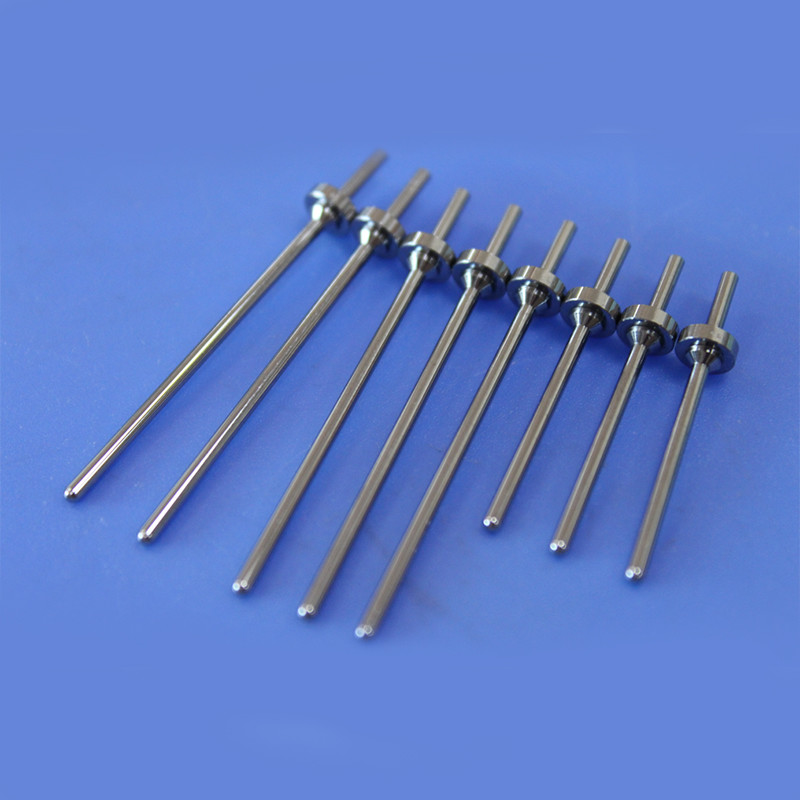

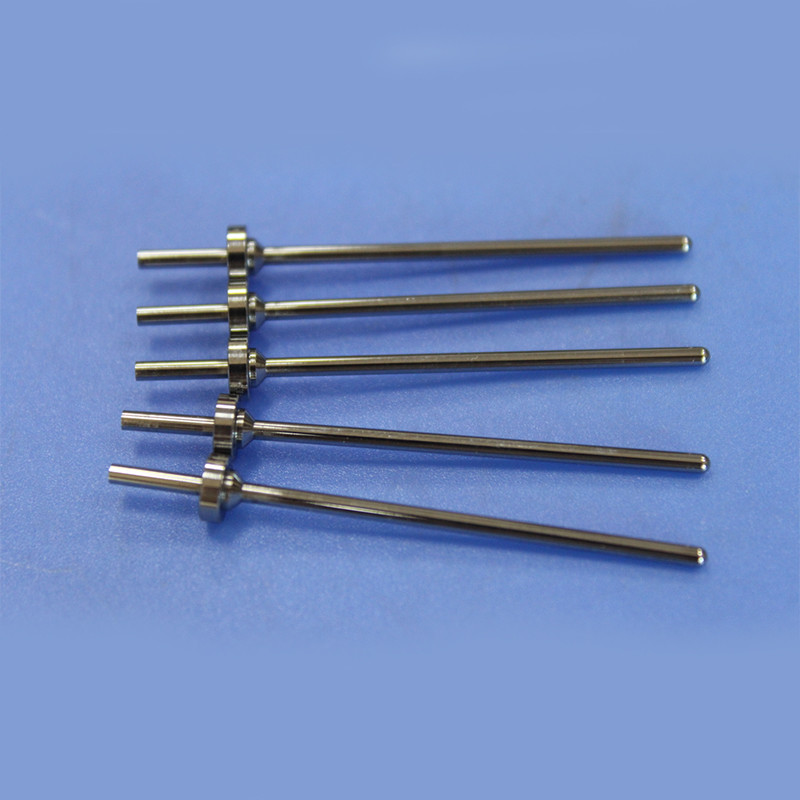

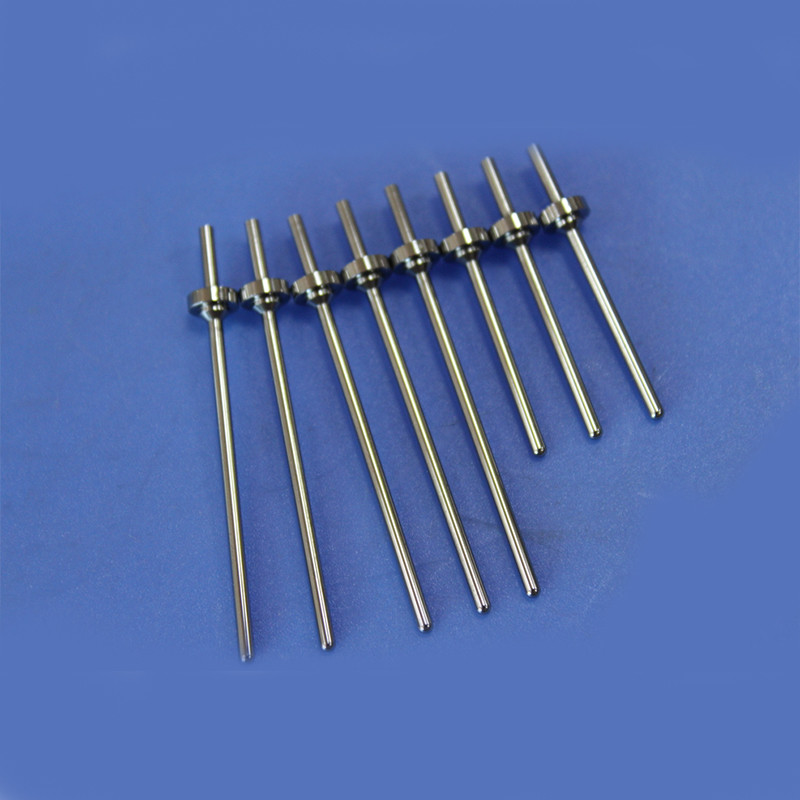

Tungsten Carbide High Precision Glue Dispenser Tungsten Steel Punch Pin

The cemented carbide high precision tungsten carbide pin, is made according to the drawings customized, the measurements are:
1. PZ-J100-04 D15B-36L carbide punch:φ5*φ3*φ1.5*SR0.75*43.25,
2. PZ-J200-05 D15B-23L carbide pin:φ5*φ3*φ1.5*SR0.75*30.25.

This carbide punch pin series requires high accuracy as shown below:
Geometric tolerance requires coaxiality 0.006,
Verticality 0.008,
Size tolerance requirement-0.005,
Finish requires Ra 0.1 mirror polishing.

Precision tungsten carbide arc collision punch pin, is professional used for dispensing valve, glue filling machine, coating machine and other precision mechanical equipment.

The dispensing machine is an automatic machine to control the fluid and seal the liquid drip, glue, coating and filling on the product surface or the interior of the product. Can achieve 3D and 4D path point glue filling, precise positioning, precise glue control, no wire drawing, no glue leakage, no glue drop. Spot machine glue machine is mainly used for processing precise point, injection, coating, irrigation, drip to the precise position of each product, can be used to achieve dot, drawing, round or arc. The use of automatic integration mechanical equipment parts made of tungsten carbide material need to meet the high precision, wear resistance, lifelong operation.



Company Profile:

Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd, is engaged in R&D of cemented carbide raw material, processing, selling and aftermarket services.
Sanxin dedicated in inheriting tungsten carbide OEM services and improvement solutions, has a specialized technical team as a solid foundation and obvious superiority to manufacture high-quality tungsten carbide product.
Sanxin was established in 2003;
Two main factories were built in 2007;
Passed ISO 9001:2015 in 2017;
High-tech Enterprise Identified in 2017;
Obtained foreign trading license 2017;
Confirmed as supplier of CLEP in 2021;
Owned more than 20 patent certificates.
We always carry out "quality and customer first", "Samples available", "punctual delivery", "mutual benefit", "focus on innovation", "service creates value"…business policy in the market. Sanxin delivering carbide value.

Property Description
Wear Resistance Excellent
Size Customized
Product Name Tungsten Carbide Processing
Shape Round, Square, Rectangular
Heat Resistance ≤900ºC
Processing Method Cutting, Grinding, Polishing
Impact Resistance Excellent
Surface Finish Smooth, Shiny
Lifespan Long
Hardness HRC90-HRC95
Machining Tungsten Carbide Yes
HVOF Tungsten Carbide Yes
