Non Standard Tungsten Steel Punch with Titanium Coating

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2156
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Tungsten Carbide Punch Application: Punching, Stamping, Forming
Material: 100% Virgin Tungsten Carbide Advantage: High Efficiency
Tolerance: Customized Wear Resistance: Excellent
Drawing: Your Drawing Is Accepted Applications: Metal Stamping, Punching, Forming
Highlight:

tungsten carbide production

,

tungsten carbide parts

Product Description

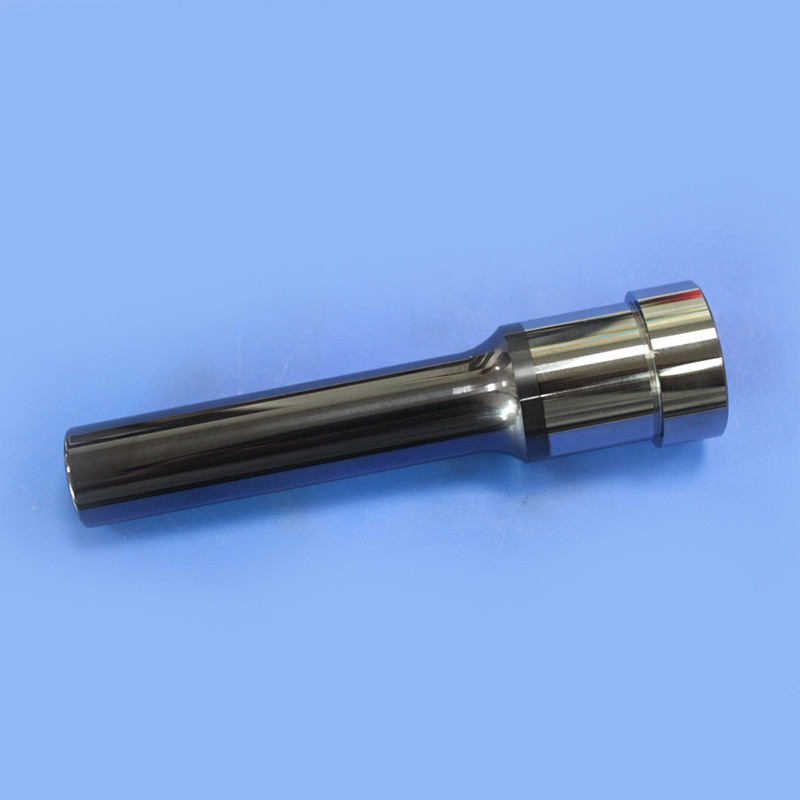

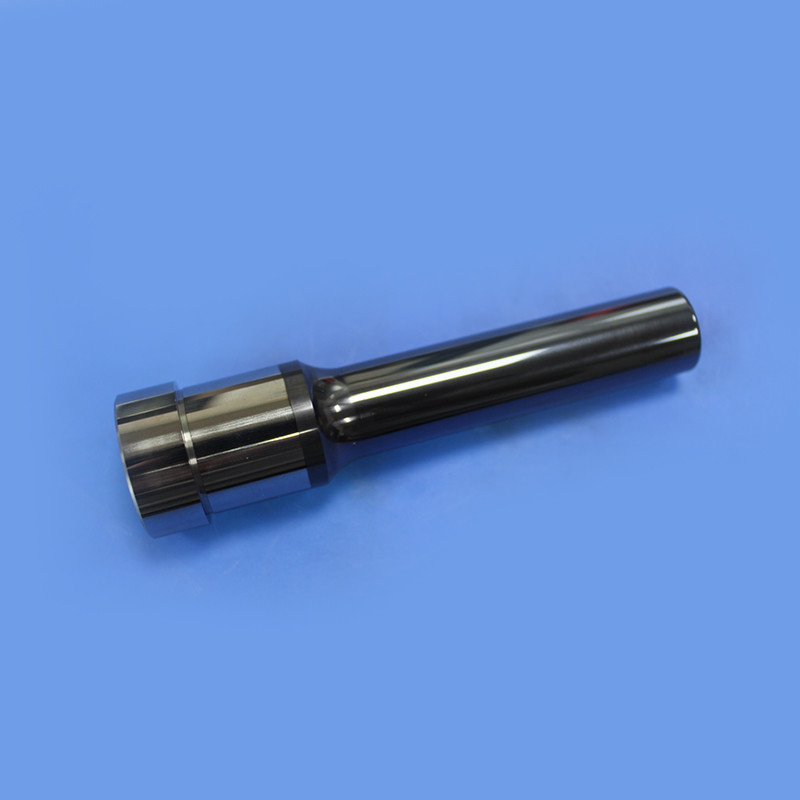

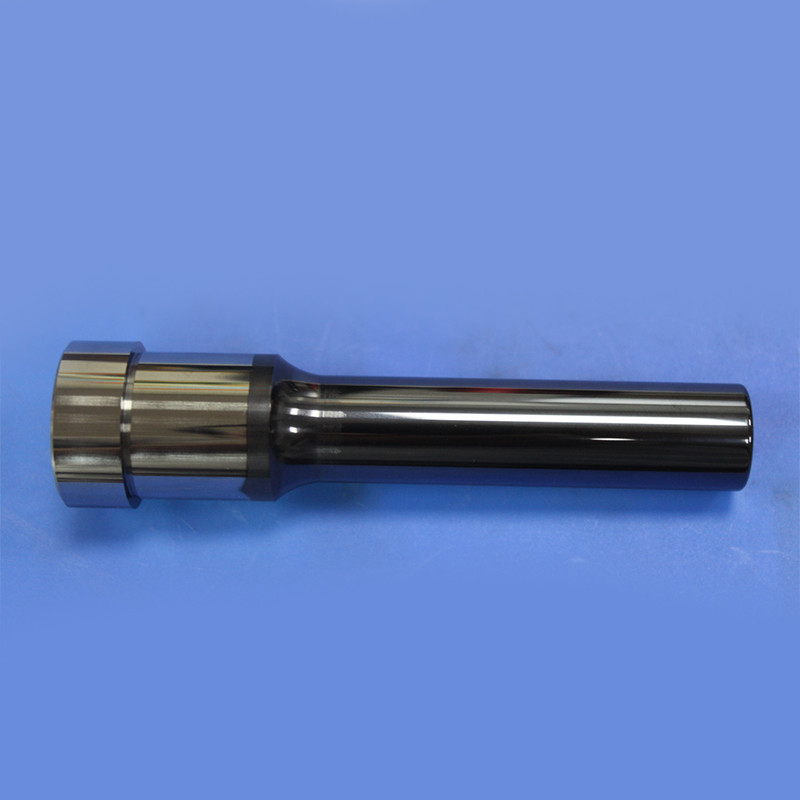

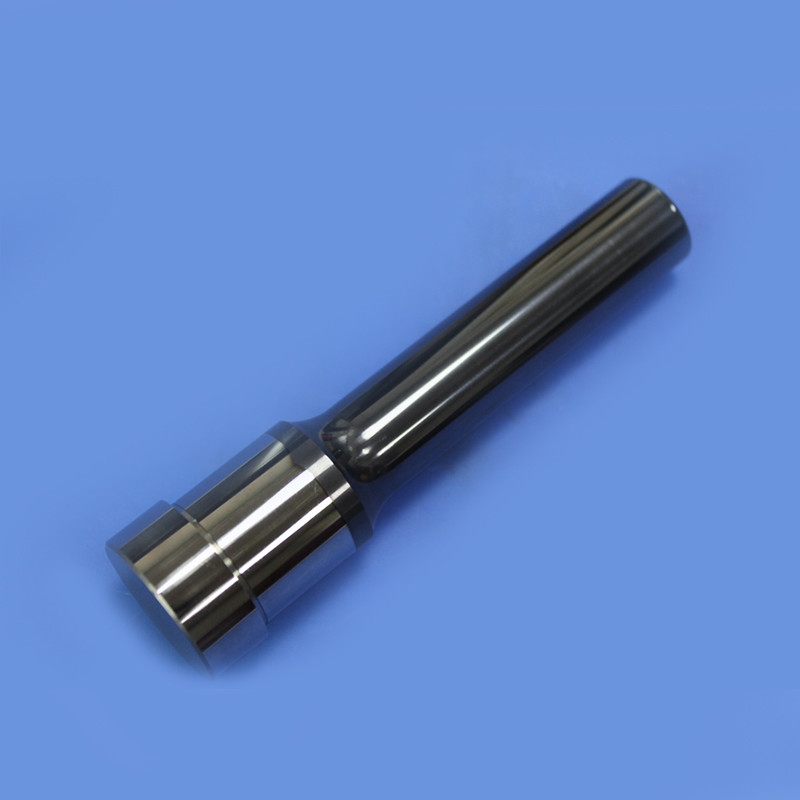

Non Standard Tungsten Steel Punch with Titanium Coating

1 Materials and Manufacturing:
  • Materials: The welding electrode typically consists of a tungsten carbide base and a titanium alloy coating. Tungsten carbide provides high hardness and wear resistance, while the titanium alloy coating enhances conductivity and oxidation resistance.
  • Manufacturing Process: Typically involves manufacturing the tungsten carbide base first, followed by coating it with a titanium alloy layer using techniques like physical vapor deposition or chemical deposition.
2 Functions and Features:
  • High Wear Resistance: The tungsten carbide base offers excellent wear resistance, capable of enduring prolonged use under high temperatures and pressures.
  • Excellent Conductivity: The titanium alloy coating improves electrode conductivity, aiding in stabilizing welding processes and arc melting efficiency.
  • Oxidation Resistance: The titanium coating effectively resists oxidation, prolonging electrode lifespan and stability.
3 Applications:
  • Welding and Arc Melting: Used for welding various metal materials such as steel, aluminum, alloys, particularly in applications requiring high temperature and strength.
  • Metal Processing and Manufacturing: Widely applied in industries including aerospace, automotive, shipbuilding, and heavy machinery manufacturing.



Tungsten Carbide Punch Introduction:

We can provide tungsten steel punch precision production, non-standard shaped tungsten steel punching needle processing, hard alloy punching needle, and precision tolerance requirements can be±0.002mm.

Punch materials used for stamping die are various, like conventional tool steel, die steel, high-speed steel and so on. The punch used in the rotor core stamping die has special requirements, mainly it uses the tungsten steel punch series with high precision requirements and good service life. For the tungsten steel punch non-standard production and processing, the dimensional accuracy is ± 0.002, especially meeting the requirements of the precision stamping die row size. The tungsten steel punch produced mainly adopts the following common tungsten steel material



Tungsten Carbide Punch ​Parameters:

1. CO content: 10% ~ 20%

2. Density(g/cm³): 14.0 ~ 14.5

3. Hardness: 87-92.0HRA

4. Grain size: 0.6 ~ 1.2 um

5. Bending strength: 4000MPa.

6. Modulus of elasticity (GPa):490

7. Thermal expansion coefficient 10-6/0C: 5.4.

8. The dimensions and specifications of the cemented carbide punch are customized according to the drawings, and the precision requirements are ±0. 002mm.



About us:

We manufacture precision stator rotor core stamping die: tungsten steel rotor measuring punch, tungsten steel stator forming punch, tungsten steel stator punch, tungsten steel inner and outer rotor pushing needle, tungsten steel inner and outer rotor forming needle, tungsten steel inside and outside and series of fixed rotor core stamping die precision punch needle. The precision of tungsten steel punch used in precision molds is very high, and the consistency of the products requires that each punch of mass production must strictly meet the dimensional accuracy tolerance requirements and maximize the service life of the mold. As a tungsten steel punch needle punch used in precision molds, product consistency is a key factor, which will directly affect the life of the mold and the dimensional accuracy of the product.

Non Standard Tungsten Steel Punch with Titanium Coating 0
