Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd

Powder Metallurgy Tungsten Steel Pressing Mold Wolfram Carbide Forming Die

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX0051
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Wolfram Carbide Forming Die Technology: Powder Metallurgy
Production Process: Precision Tungsten Machining Grades: Various Grades
Surface Finish: Polished Compatibility: Compatible With Various Machines
Highlight:

carbide wire drawing dies

,

cold heading dies

Product Description

Powder Metallurgy Tungsten Steel Pressing Mold Wolfram Carbide Forming Die
We provide high-quality hard alloy (tungsten steel) powder metallurgy molds, custom manufactured according to your drawings or samples. Our cemented carbide (tungsten steel) powder metallurgy forming dies feature full densification, high wear resistance, and excellent corrosion resistance, making them ideal for pressing applications including magnetic powder, ceramic powder, refractory metal powder, and iron-copper-based powders.
Technical Parameters
Cemented Carbide Powder Metallurgy Mold Material Applications & Performance
Grade Co% Density g/cm³ Hardness HRA Bending Strength Mpa Elastic Modulus Gpa Application
SX05B 6.5 14.8 91.5 2800 525 Good wear resistance, suitable for simple cavity molds
SX30 9 14.6 90.5 3200 500 Highly versatile, suitable for soft magnetic materials, iron-based, copper-based powder molds
SX10 10 14.4 92 4000 490 Ultra-fine grain alloy, excellent wear resistance and strength, highly versatile, suitable for soft magnetic, iron-based and copper-based powder molds
SX20 13 14.2 90.5 4000 460 Ultra-fine grain, moderate hardness, high strength, good wear resistance, suitable for relatively complicated shaped molds
SX40A 12 14.2 89 3400 470 High strength, suitable for complex internal cavity molds
SX45A 15 13.9 87 3300 440 Good comprehensive performance, high strength and excellent electrical processing performance, suitable for molds with complex cavities
SX50A 20 13.4 85 3100 390 Good toughness, good impact resistance, good electrical processing performance, suitable for complex molds under high load
Product Advantages
  • Manufactured using domestic high-quality tungsten carbide powder and imported cobalt powder
  • Sintered in 10MPa pressure sintering furnace for enhanced densification and reduced porosity
  • Superior mechanical properties with high impact resistance, exceptional wear resistance, and extended service life
Sanxin Carbide Product Features
100% virgin wolfram carbide materials
Fine-grain, even ultra fine grain tungsten carbide available
Excellent wear, abrasion, and corrosion resistance
High fracture strength and high hardness
Longer service life
Varied cemented carbide material grades
Competitive EXW factory pricing
Customization services available
Expert Technical Support
Backed by a team of industry experts including Professors from Central South University Powder Metallurgy Research Institute and Doctoral Supervisors. Our technical advisors include the Chief Engineer of Powder Metallurgy Institute of Central South University, a national science and technology progress award winner.
From powder selection, forming, and sintering to processing and quality inspection, Zhuzhou Sanxin Cemented Carbide Manufacturing Co., Ltd. maintains strict quality control at every production step, ensuring superior product quality and value. We are committed to providing key components that drive success for our customers.

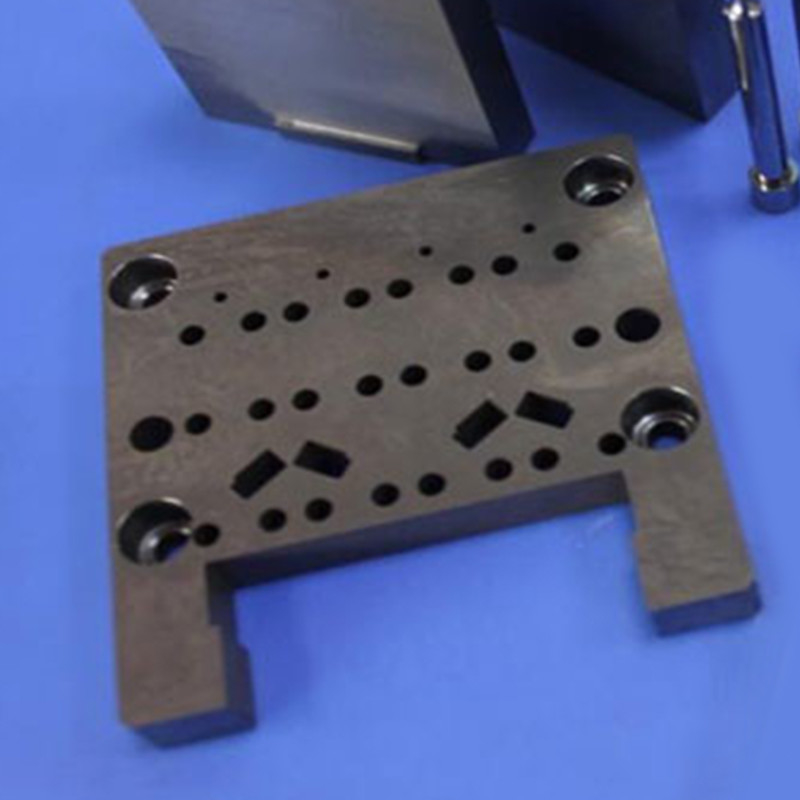

Powder Metallurgy Tungsten Steel Pressing Mold Wolfram Carbide Forming Die 0
