Densimet Heavy Metal High Density Tungsten Alloy Screws with Chemical Stability and Customizable Dimensions for Air Terminations

Densimet Heavy Metal High Density Tungsten Alloy Screws with Chemical Stability and Customizable Dimensions for Air Terminations

Product Details:
Place of Origin:	China
Brand Name:	Sanxin
Certification:	ISO
Model Number:	SX0016
Payment & Shipping Terms:
Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Safety Packing
Delivery Time:	15~45 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10-50000pcs/month

Contact Now

Detail Information
Product Description

Detail Information
Name:	Tungsten Alloy Screws	Material:	Densimet Heavy Metal
Feature:	High Density	Custom Service:	Available
Chemical Stability:	High	Dimension:	Customizable
Highlight:	carbide disc cutter , paper cutter blade

Product Description

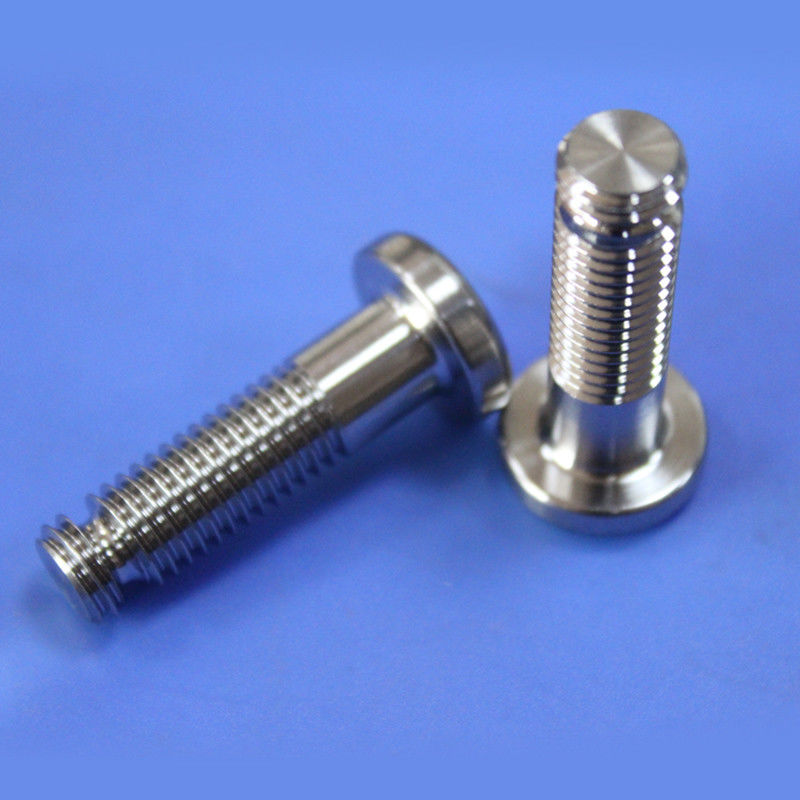

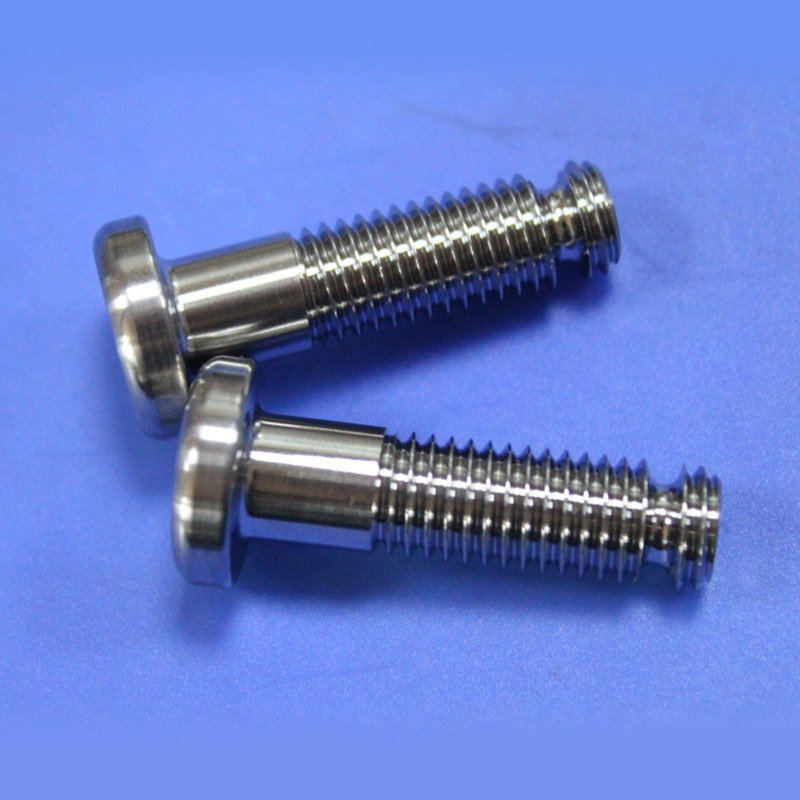

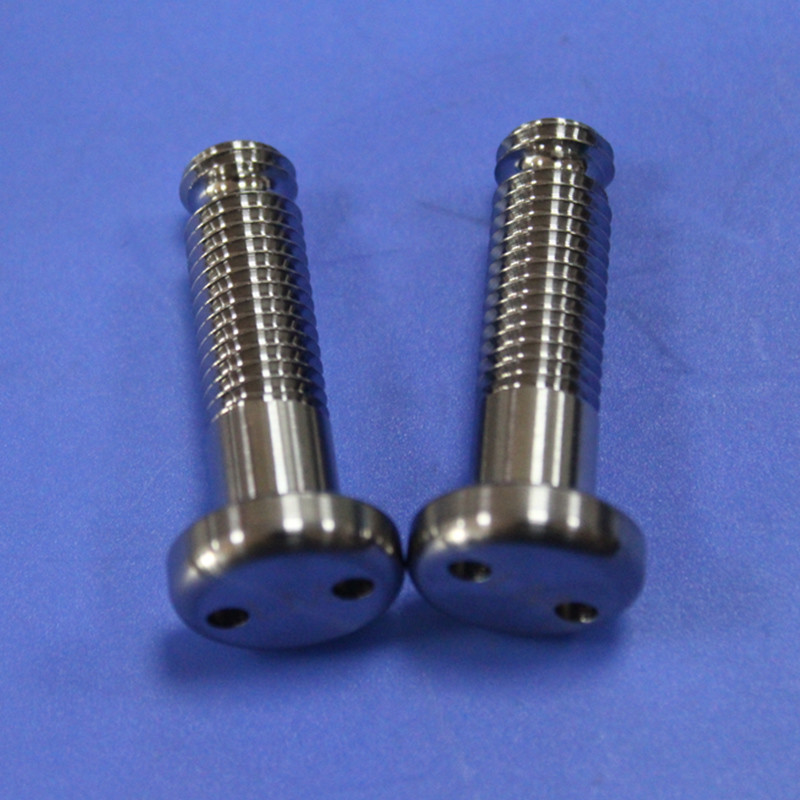

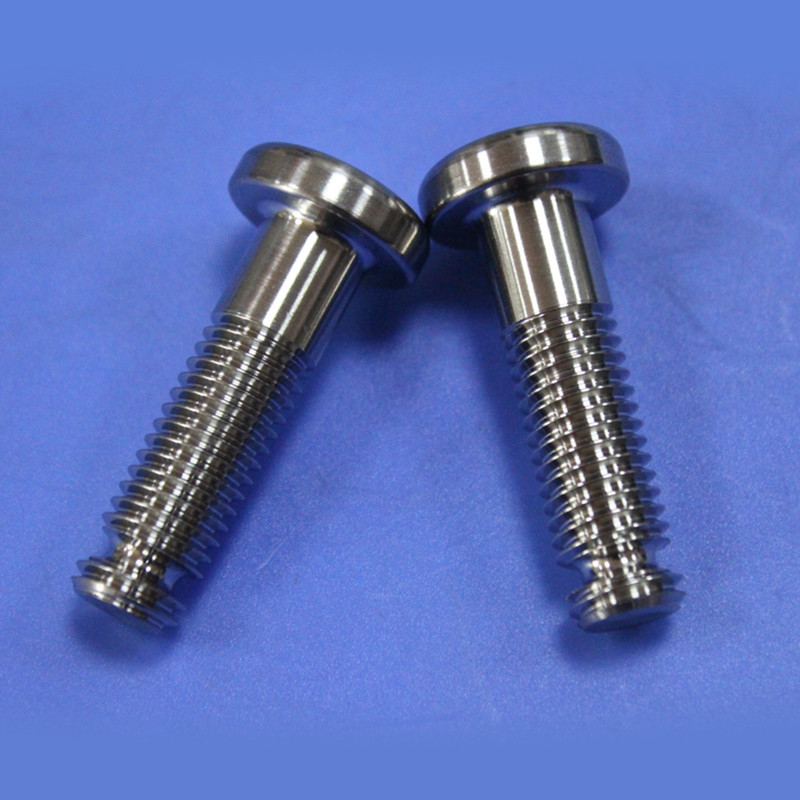

Densimet Heavy Metal High Density Tungsten Alloy Screws for Air Terminations

Densimet Heavy Metal High Density Tungsten Alloy Screw for Air Terminations

Air terminations play a critical role in lightning protection systems, capturing the full lightning strike current and safely channeling it through the conductor network to protect buildings and substations.

Furse air termination products are specifically engineered to provide highly effective protection against the risks and consequences of direct lightning strikes. Complete lightning strike protection is achieved with Furse air termination systems.

Furse air rods are manufactured from highly-conductive, hard-drawn copper or aluminum, providing excellent, durable strike points for lightning. The comprehensive range of air rod bases, conductor fasteners, and earth clamps are manufactured from high-quality copper or aluminum alloys, ensuring high conductivity is maintained throughout the air termination system. These components are robust enough to withstand years of exposure on roof lines.

All components connect via copper or aluminum conductors, which provide the low-resistance path for lightning current - from the strike point safely to ground.

Normal Tungsten Nickel Iron Alloy Properties

Chemical Component (%)	Density (g/cm³)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	HRC Max (HRC)	Magnetic
W: 90, NiFe: Remain	16.85-17.25	≥758	≥517	≥5	32	Yes
W: 92.5, NiFe: Remain	17.15-17.85	≥758	≥517	≥5	33	Yes
W: 95, NiFe: Remain	17.75-18.35	≥724	≥517	≥3	34	Yes
W: 97, NiFe: Remain	18.25-18.85	≥689	≥517	≥2	35	Yes

High Performance Sintering Tungsten Nickel Iron Alloy Properties

Density (g/cm³)	Tensile Strength (MPa)	Yield Strength Rp0.2 (MPa)	Elongation A (%)	Hardness (HRC)	Magnetic
16.85-17.25	900	600	15	≤32	Yes
17.15-17.85	900	600	15	≤33	Yes
17.75-18.35	850	600	10	≤34	Yes
18.25-18.85	800	600	7	≤35	Yes

Tungsten Nickel Copper Alloy Properties

Chemical Component	Density (g/cm³)	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation Rate (%)	Hardness (HRC)	Magnetic
W: 90, NiCu: Remain	16.85-17.25	≥648	≥517	≥2	32	No
W: 92.5, NiCu: Remain	17.15-17.85	≥648	≥517	≥2	33	No
W: 95, NiCu: Remain	17.75-18.35	≥648	≥517	≥1	34	No

After Sales Service

Zhuzhou Sanxin Cemented Carbide Production Co., Ltd. provides the following commitments:

Each factory blade includes a digital security identification code to ensure authenticity
Product delivery completed within one working day after order placement, primarily via express delivery
All carbide cut legs blades include detailed usage instructions
Comprehensive satisfaction guarantee including replacement, return, and technical guidance services
Commitment to quality production and business integrity
Customized cut legs blade usage solutions available
