Ceramic Core Injection Mold For Optical Fiber Communication System

Optical fiber connectors are essential passive components in fiber optic communication systems, designed to enable precise, non-permanent connections between equipment, instruments, and fiber optic cables. These connectors ensure maximum coupling efficiency of optical energy from transmitting to receiving fibers.

Most fiber optic connectors consist of three primary components: two mating plugs (ferrules) and a coupling sleeve. The ferrules are inserted into fiber ends, while the coupling sleeve provides alignment and typically includes metal or non-metal flanges for secure mounting.

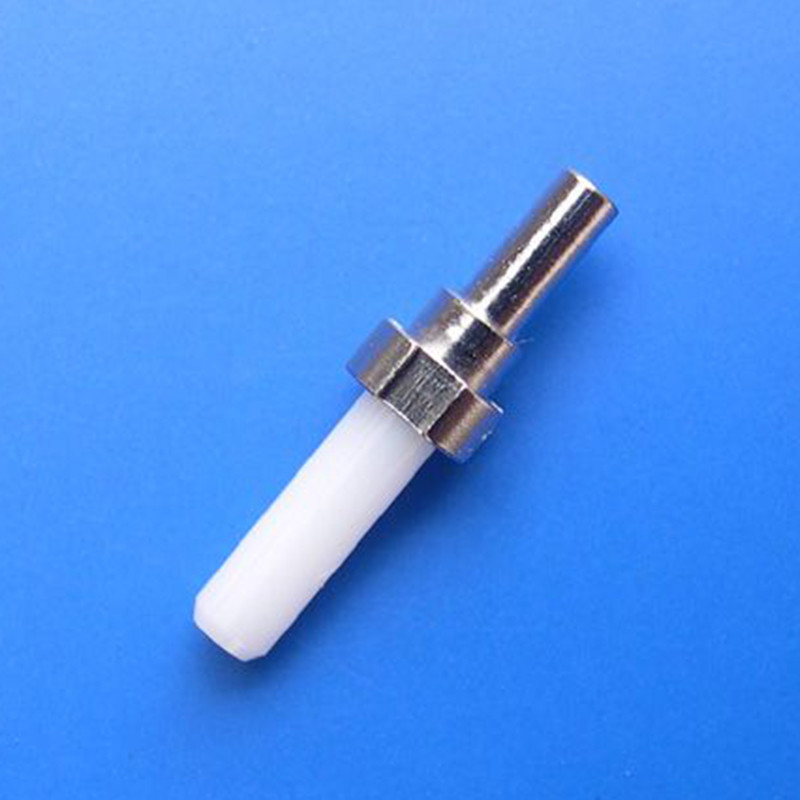

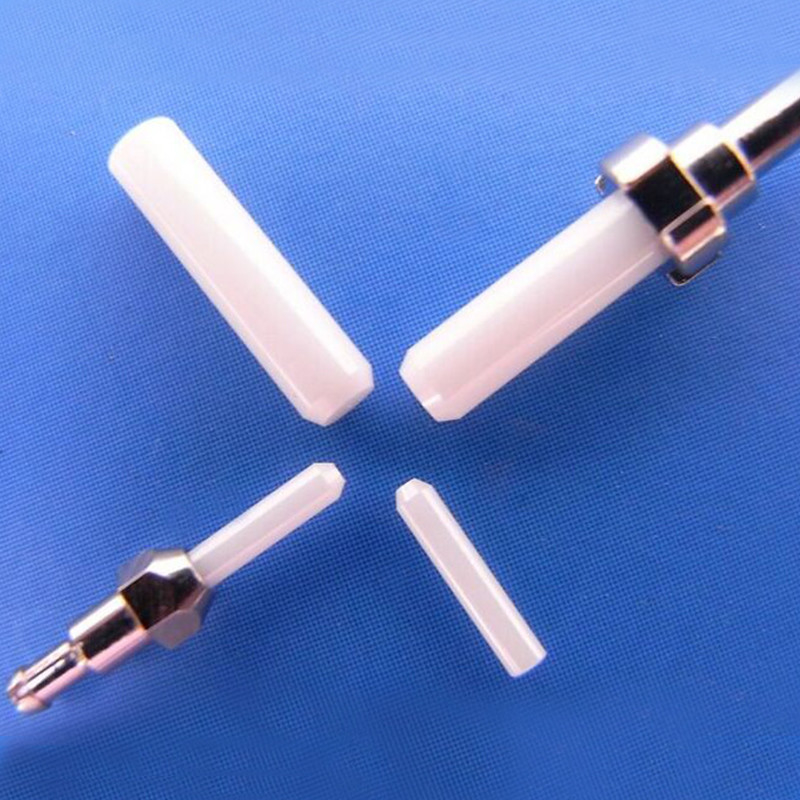

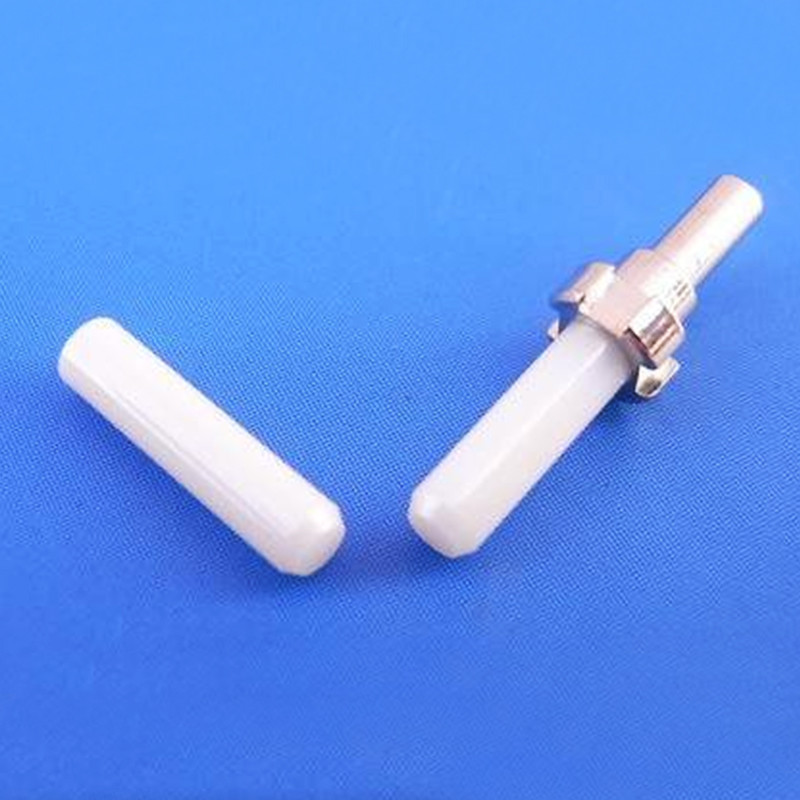

Ceramic ferrules feature a precise 0.1mm bore with stringent dimensional concentricity requirements. Our ceramic injection molding technology achieves these specifications through a two-stage manufacturing process:

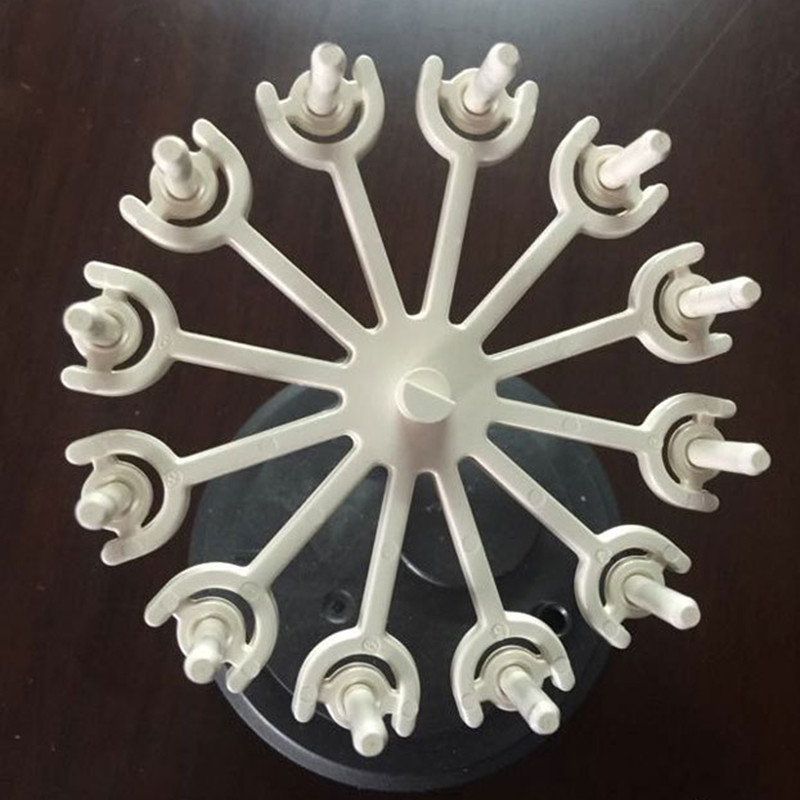

Our innovative 1-mold 12-cavity design significantly improves production efficiency compared to traditional 1-mold 6-cavity or 1-mold 8-cavity systems. Performance data from Zhongke workshop demonstrates:

Our ceramic core injection molds incorporate advanced manufacturing technologies to meet the highest precision standards in optical communications:

Zirconia ceramic material offers superior properties for fiber optic applications:

The growing demand for information and communication technology drives the need for high-quality fiber connector ceramic ferrules. Our precision molds enable manufacturers to meet market demands with superior efficiency, consistency, and precision - essential factors for success in the competitive optical communications industry.
