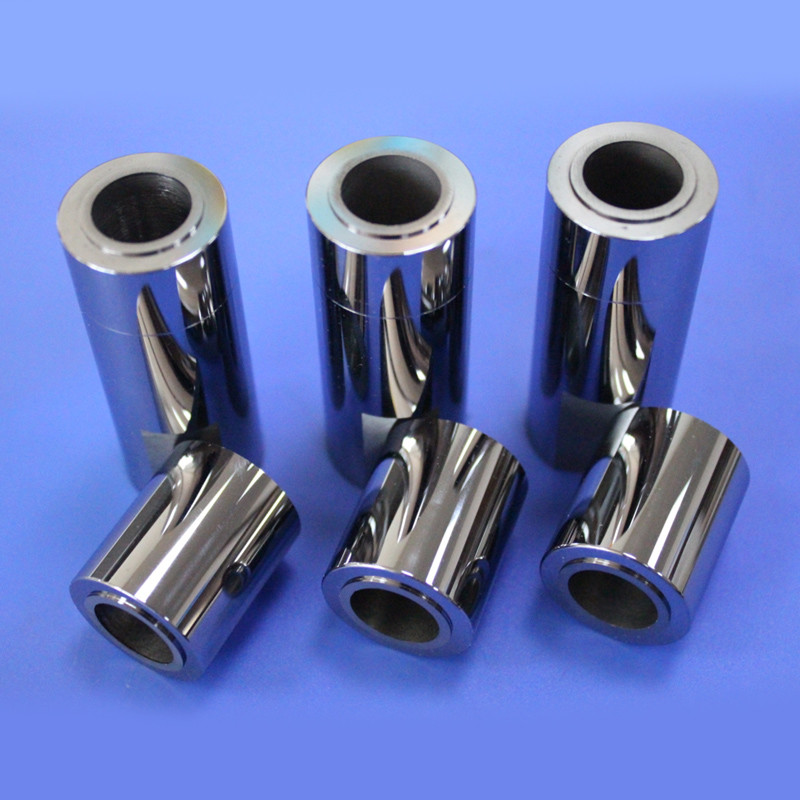

Progressive Punching Die Carbide Mold Core According To Drawings Or Samples
Progressive Punching Die Carbide Mold Core According To Drawings Or Samples Progressive Punching Die Carbide Mold Core According To Drawings Or Samples Progressive Punching Die Carbide Mold Core According To Drawings Or Samples Progressive Punching Die Carbide Mold Core According To Drawings Or Samples

Progressive Punching Die Carbide Mold Core According To Drawings Or Samples

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX1376
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 10-50000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Name: Carbide Progressive Punching Die Service: OEM&ODM
Type: Carbide Wear Parts Usage: Production Operation
Application: Molding Industry Material Formula: Customized
Samples: Available Surface Finish: Mirror Polishing
Highlight:

carbide wire drawing dies

,

progressive punching die

Product Description

Progressive Punching Die Carbide Mold Core According To Drawings Or Samples
We provide high-precision tungsten carbide mold upper and lower mold cores for new energy manufacturing companies. As the core component of production equipment, tungsten steel mold cores are valued for their exceptional physical properties including wear resistance, corrosion resistance, high hardness, and strength. These characteristics make them ideal for demanding applications in extreme environments such as new energy power batteries, oil and gas drilling, automotive and marine industries, and large-scale industrial production.
Technical Specifications
Grade Co% Hardness HRA Density g/cm³ Bending Strength Mpa Elastic Modulus Gpa Applicable Punching Materials
SX10 10 91.7 14.4 4300 490 Copper, aluminum sheets under 0.2mm thickness
SX15 12 92.5 14.1 4500 460 Copper, aluminum, and stainless steel sheets
SX20 13 90.6 14.1 4100 460 Copper, aluminum sheets with high versatility
SX35A 12 89.8 14.2 3400 470 Cold rolled sheets (Q195, SPCC)
SX36 15 89.4 13.8 3900 430 EI film, SPCC board
SX40A 12 88.9 14.2 3300 470 Cold rolled sheets (Q195, SPCC)
SX45A 15 87.9 13.9 3200 440 Silicon steel sheet, cold rolled sheet
SX55 20 86.4 13.5 3100 390 Silicon steel sheet, upper and lower punch
Key Advantages
Outstanding Wear Resistance
Tungsten carbide possesses remarkable hardness and wear resistance, capable of withstanding friction and impact from high-speed pump operation.
Superior Corrosion Resistance
The embedded structure effectively isolates external media from corroding the steel, prolonging product life and making it suitable for different liquid environments.
Excellent Sealing Performance
The design of dynamic and static ring components ensures reliable sealing during pump operation, reducing the risk of leaks.
Suitable for High-Pressure Environments
Tungsten steel inserts can withstand high-pressure working conditions in water pumps, ensuring system stability.
Manufacturing Excellence
  • Professional material engineers select optimal material grades and superfine particle raw powder according to your specific requirements
  • Advanced precision processing equipment combined with unique manufacturing processes
  • High wear resistance and long service life significantly reduce edge grinding frequency and maintenance requirements
  • Unique production process effectively controls internal stress in large-size mold materials, preventing cracking during cutting operations
  • Specialized alloy material enhances corrosion resistance during electrical processing, improving mold performance and service life
Progressive Punching Die Carbide Mold Core According To Drawings Or Samples 0
