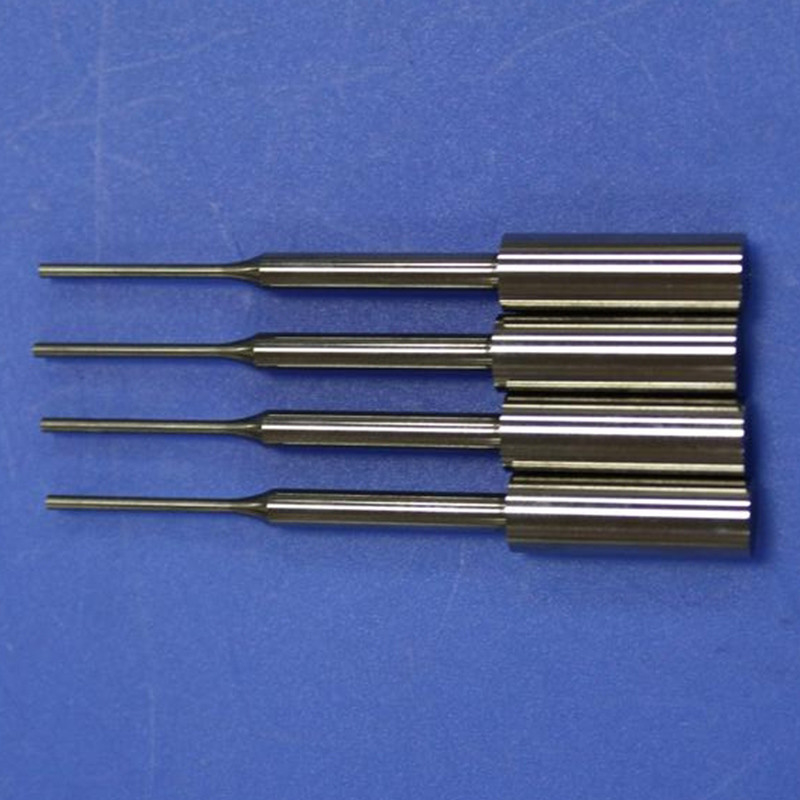

Φ1.2mm Precision Cemented Carbide Punch and Die Tungsten Pins

Product Description

Φ1.2mm Precision Cemented Carbide Punch and Die Tungsten Pins

Cemented carbide processing tungsten carbide punch pin, tungsten pins
Tungsten steel processing non-standard customized carbide punch and die press tool forming pin.

High wear resistance, widely used for cast iron, non-ferrous metals and their alloys and Nonmetal processing tools, wear parts, but also for other alloys.

High bending strength,wear resistance lower than YG6,used for wear resistance parts etc.

Applicable to all kinds of metal and non-metallic powder molding and stamping.

Suitable for steel bars and steel tubes with high compression ratio. Forging, punching and punching tools for working under high stress.
Suitable for general wear resistant and impact resistant dies.

Tungsten Carbide Pin Technical parameters:

Tungsten steel material are chosen as processing for its material long-lasting physical properties, which goes beyond other metal tool materials. High wear resistance is one of the advantages of tungsten steel processing products. Under the actual working conditions of progressive molds, combined molds and multi-station molds, the tungsten steel mold materials are still durable. Thus, as a tool material, it is a good choice for mold products because of its high hardness, high strength and high wear resistance. According to the actual production operation, the processing of non-standard tungsten steel mold is taking the customer's specific drawing as the accuracy tolerance standard. The physical parameters of conventional tungsten steel forming pins can be referred to as follows:

• Grain size (um): 0.8 ~ 2.0
• Cobalt content (Co%): 6 ~ 10
• Density (g/cm³): 14.45
• Hardness HRA: 88 ~ 92
• Bending strength (Mpa): 3200 ~ 3800
• Young's modulus (Gpa): 570
• Compressive strength (Mpa): 4700

If the customer has special requirements, we can provide tungsten steel products with special requirements for production and processing.
