High Accuracy Hardened Steel Cemented Carbide Pin Gauge Set

Product Details:
Place of Origin: China
Brand Name: Sanxin
Certification: ISO
Model Number: SX2262
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Safety Packing
Delivery Time: 15~45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10-50000pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: Cemented Carbide Pin Gauge Set Feature: High Accuracy
Type: Measuring Pin Gauge Advantage: Long Service Life
Tolerance: H6,h7,OEM Tolerance Service: OEM&ODM
Application: Machining, Wear Parts, Tooling Specification: Various Sizes
Business Type: Factory With Full Production Line
High Light:

tungsten carbide parts

,

tungsten carbide tools

Product Description

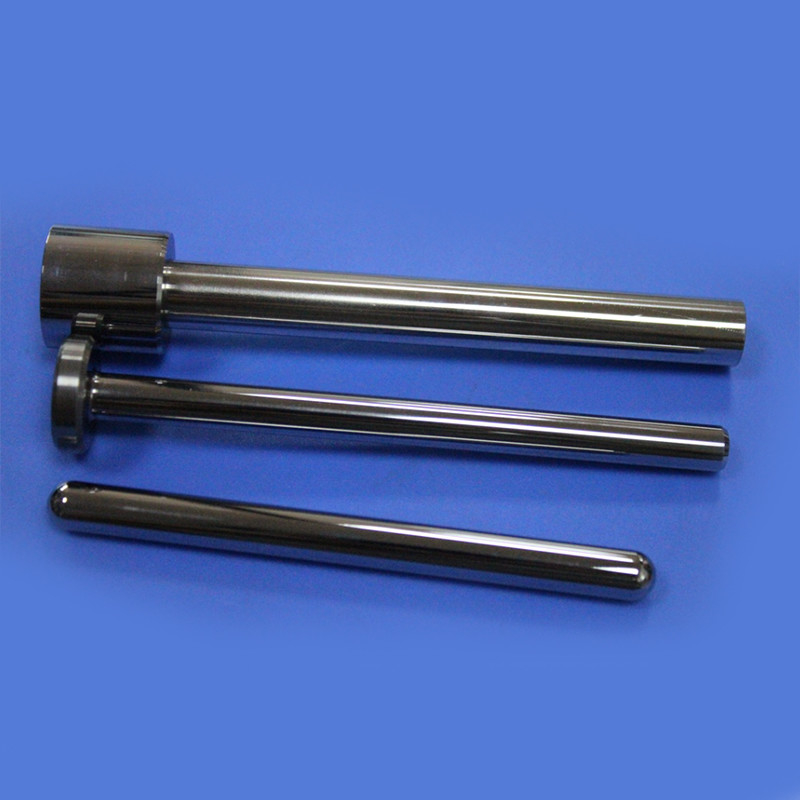

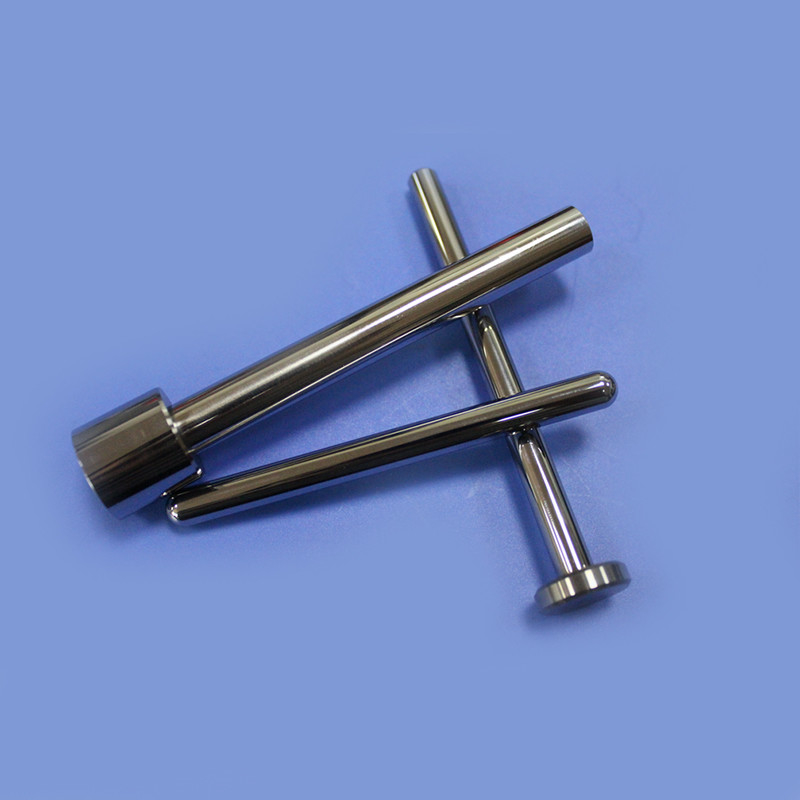

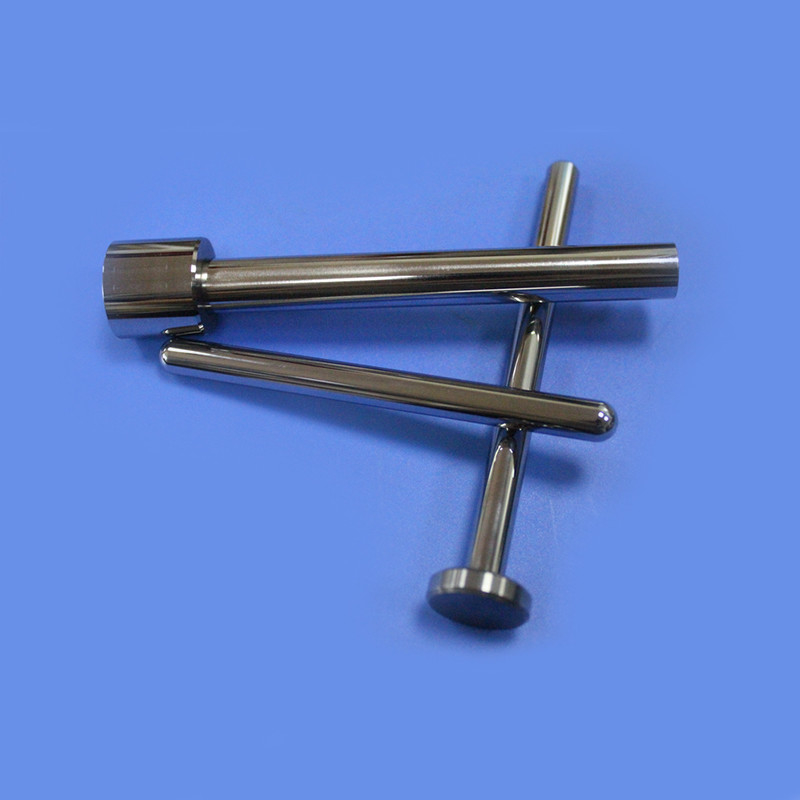

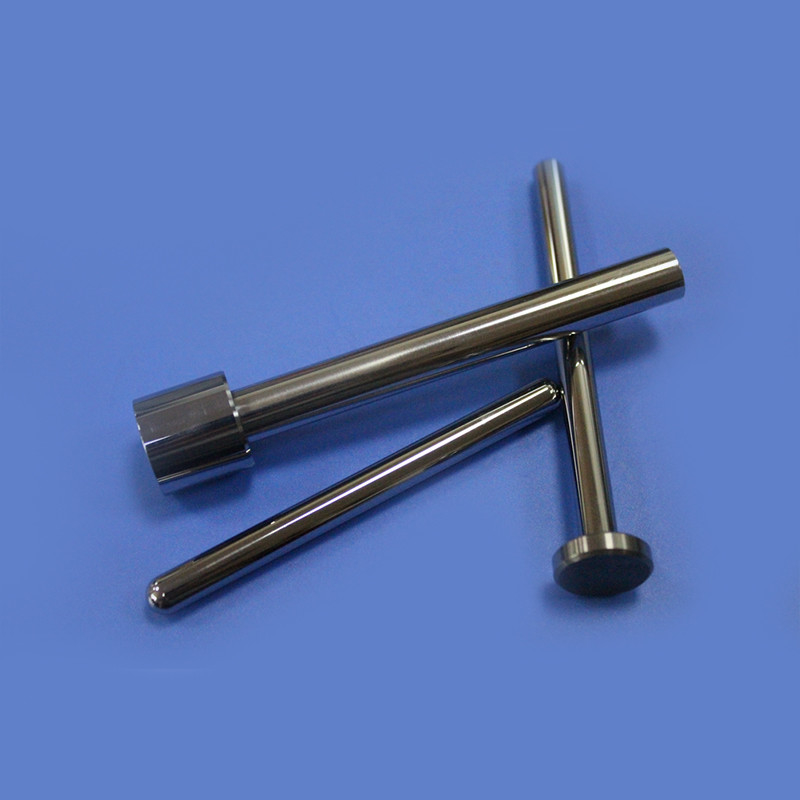

High Accuracy Hardened Steel Cemented Carbide Pin Gauge Set

Cemented carbide pin gauge sets are precision measurement tools used for checking hole diameters, depths, and distances in various industrial applications.



Features of Carbide Pin Gauge Sets:
Material: Carbide pin gauge sets are typically made of high-quality tungsten carbide, known for its hardness, wear resistance, and durability, ensuring long-lasting performance in demanding environments.
Precision Machining: These sets are manufactured with high precision to tight tolerances, providing accurate and reliable measurements for quality assurance and inspection processes.
Versatility: Carbide pin gauge sets are versatile tools suitable for measuring a wide range of internal dimensions, making them essential for industries such as manufacturing, engineering, and quality control.
Standardization: These sets often come in standardized sizes and increments, allowing for easy identification and selection of the appropriate gauge pins for specific measurement tasks.
Wear Resistance: The carbide material used in these gauge sets offers exceptional wear resistance, ensuring minimal deformation or damage over extended use, leading to consistent and reliable measurements.
Interchangeability: Carbide pin gauge sets typically consist of a range of gauge pins that can be interchanged within the set, providing flexibility in measuring various hole sizes without the need for multiple individual tools.
Storage and Organization: These sets often come in well-organized cases or holders, allowing for convenient storage and easy access to the gauge pins while keeping them protected and secure.



Benefits of Using Carbide Pin Gauge Sets:

Accurate Measurements: Carbide pin gauge sets provide precise measurements, ensuring that components meet required specifications and tolerances.
Quality Control: These sets are essential for quality control processes, allowing manufacturers to maintain consistency and accuracy in their products.
Cost-Effective: By offering durable and long-lasting performance, carbide pin gauge sets help reduce the need for frequent replacements, resulting in cost savings over time.
Efficiency: Using these sets streamlines measurement tasks, saving time and improving overall efficiency in inspection and machining operations.

Cemented Carbide pin gauge sets are indispensable tools in industries where precise measurements are critical for maintaining quality standards and ensuring the accuracy of machined components.



Hardened Steel Pins Technical parameters:

Tungsten steel material are chosen as processing for its material long-lasting physical properties, which goes beyond other metal tool materials. High wear resistance is one of the advantages of tungsten steel processing products. Under the actual working conditions of progressive molds, combined molds and multi-station molds, the tungsten steel mold materials are still durable. Thus, as a tool material, it is a good choice for mold products because of its high hardness, high strength and high wear resistance. According to the actual production operation, the processing of non-standard tungsten steel mold is taking the customer's specific drawing as the accuracy tolerance standard. The physical parameters of conventional tungsten steel forming pins can be referred to as follows:

  • Cobalt content (Co%): 6 ~ 10
  • Density (g/cm³): 14.45
  • Hardness HRA: 88 ~ 92
  • Bending strength (Mpa): 3200 ~ 3800
  • Young's modulus (Gpa): 570
  • Compressive strength (Mpa): 4700

If the customer has special requirements, we can provide tungsten steel products with special requirements for production and processing.

High Accuracy Hardened Steel Cemented Carbide Pin Gauge Set 0
