Product Description

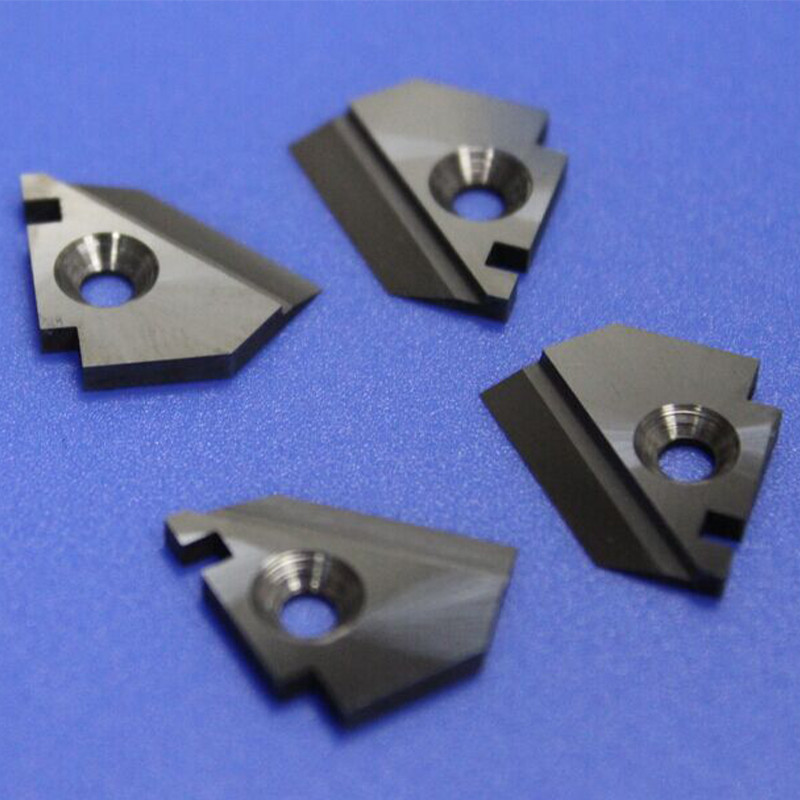

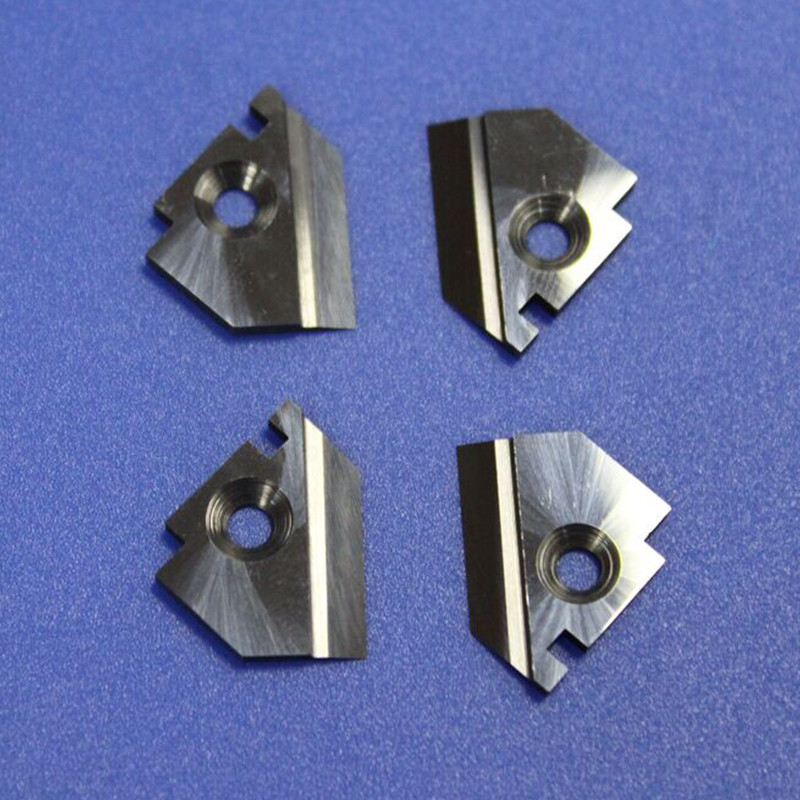

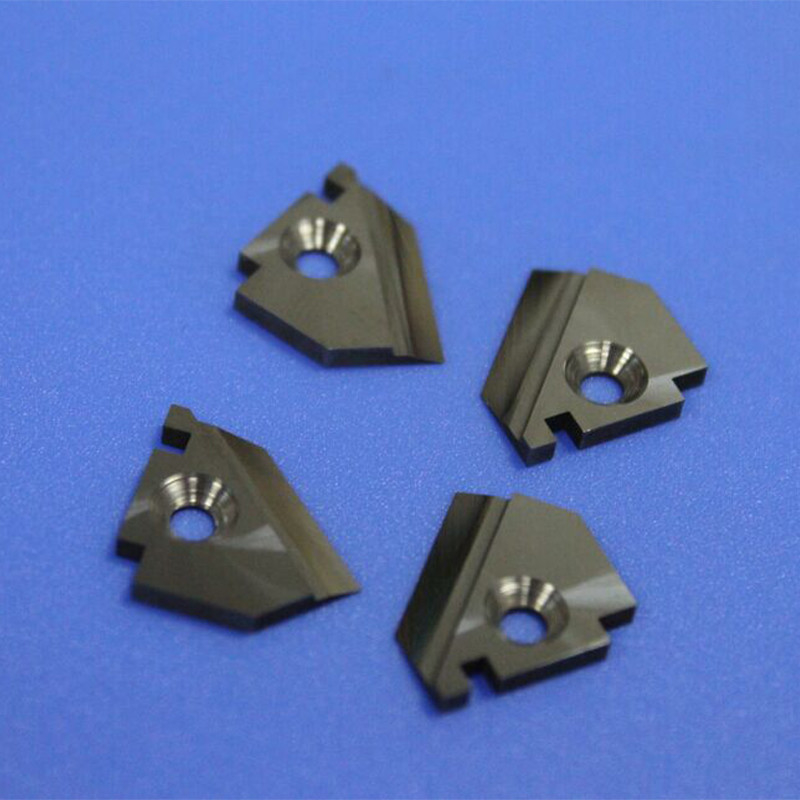

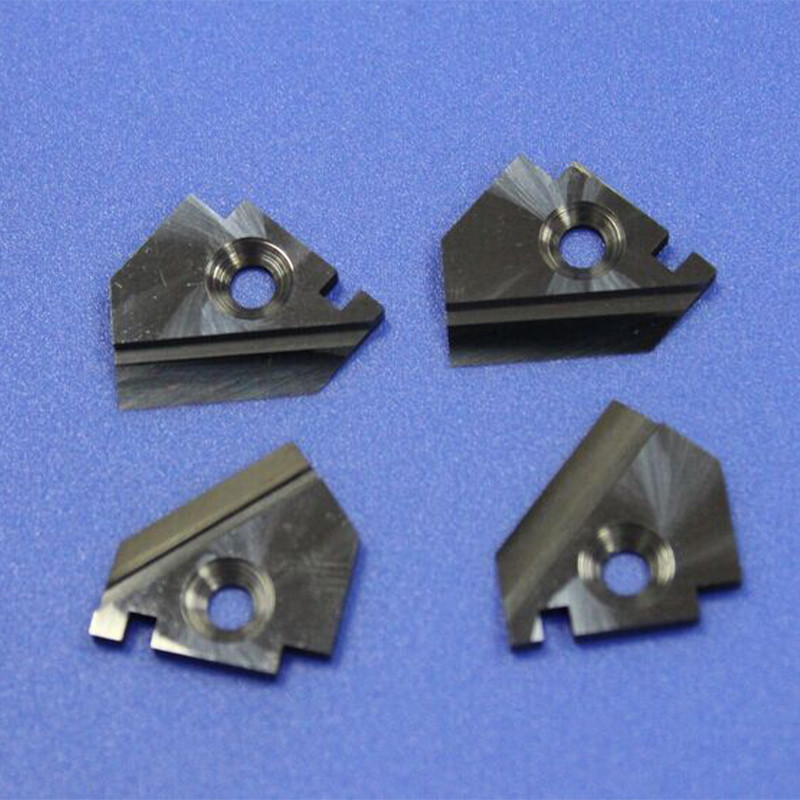

High Efficiency Tungsten Carbide Special-Shaped Fiber Stripping Knife
The Tungsten Carbide Special-shaped Fiber Stripping Knife is specifically designed for the fiber optic industry, with the primary function of stripping the outer sheath of the fiber, leaving the central core intact. Due to the extremely thin nature of the fiber optic sheath, this tool demands high precision in dimensions and meticulous blade treatment. Its design focuses on precise stripping operations to ensure the quality and reliability of the fiber.
Product Features:
- High-Precision Stripping Operation: The Tungsten Carbide Special-shaped Fiber Stripping Knife excels in dimensional accuracy, ensuring each stripping operation is precise and reliable, meeting the stringent requirements of the fiber optic industry.
- Fiber Sheath Handling: The blade is dedicated to removing the outer sheath of the fiber, leaving the central core intact to guarantee the performance and transmission effectiveness of the fiber.
- Microscopic Inspection: Dimensional accuracy is inspected by observing the blade under a 200x microscope, ensuring that the blade is free from apparent defects.
- Strict Blade Treatment Standards: The blade treatment adheres to stringent standards, allowing for blade edge defects of no more than 0.001mm, ensuring stability during the cutting process and the quality of the fiber.
The Tungsten Carbide Special-shaped Fiber Stripping Knife is a highly specialized tool in the fiber optic industry. Its exceptional performance and precise design make it a reliable solution for fiber optic processing. Meeting industry standards in both dimensional accuracy and blade quality, it provides users with an efficient and dependable fiber stripping solution.
Tungsten carbide grade: K20, K10, K30 or other appointed high quality carbide grade
Non-magnetic carbide material can also be made for forming molds of magnetic materials, with high hardness, long service life, good wear resistance and strong resistance to corrosion.
| 1 |
Grain size (um): |
1.0 ~ 2.0 |
| 2 |
Cobalt content (Co%): |
8.0 ~ 10 |
| 3 |
Density (g / cm³): |
14.41- ~ 14.95 |
| 4 |
Hardness (HRA): |
89.5 ~ 93 |
| 5 |
Bending strength (Mpa): |
3200 ~ 4500 |
| 6 |
Young's modulus (Gpa): |
570 ~ 620 |
| 7 |
Compressive strength (Mpa): |
4700 |
Besides the ISO 9001:2015 Quality management system certificate, and National high-tech enterprise certification, we've owned more than 20 patent certificates.
Cemented carbide wearing parts, also called wolfram carbide (WC) parts, are a commonly used high-end ring in the hardware machinery industry, because of its high hardness, good toughness, superior high and low temperature wear resistance, small adhesion, good corrosion resistance, high thermal conductivity, less friction coefficient, and acid and alkali corrosion resistance does not rust, easy maintenance and other characteristics.
Packaging & Shipping:
Tungsten Carbide Processing is packaged and shipped using the following methods:
Bubble wrap and cardboard boxes
Palletized shipping
Packaging and shipping methods will vary depending on the size and weight of the order, and the shipping destination.
